6000Liters Fecal Suction Tanker Truck Vacuum Suction Truck/Sewage Suction Truck Call Ms.Pinky 0086 15897603919
our Fecal Suction Tanker Truck advantage:
We are professional manufacturer for many kind of special trucks . If you need our products, please feel free to contact me .
1. Equipped with special vacuum pump,Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment,Time for full sucktion<5min
2. the Fecal Suction Tanker Truck, special section, taking the force transmission device by rotary vane pumps, vacuum pump ,(with domestic leading technology big suction) oil and gas separation
device, hydrosphere separator, vacuum pressure gauge, pressure vessel, pipe system
composition, and equipped with hand-washing facilities and visual dung tube.
3. the Sewage suction truck oblique liquid, can suck full alarm device after full automatic alarm,
prevent sewage spills of vacuum pump caused damage,optional choose carbon steel, stainless
steel, epoxy resin anticorrosive processing (rounded pot), may do anticorrosive processing,
extracting partial chemical sewage and waste water.
The Specification of Fecal Suction Tanker Truck:
| Item |
Units |
Parameter |
| Chassis type |
|
Dongfeng |
| Cabin |
|
Cabin is white, tank is white |
| Emission standards |
|
Euro 3 certificate |
| Dimension |
Mm |
7000×2300×2790 |
| Rated cubage |
L |
6000 |
| Exhaust quantity/power |
ml/kw |
4200/88 120HP |
| Maximum speed |
km/h |
95 |
| Curb weight |
Kg |
4600 |
| Wheel base |
mm |
3800 |
| Engine |
CY4102-E3C, DONGFENG CHAOYANG |
| Tire |
7.50R16 |
| Shaft number |
2 |
| STEERING |
Power steering |
| volume of tank |
6,000Litres |
| carbon steel 6mm thickness |
| With vacuum suction pump. |
| Strength heads, with liquid level indicator. With rubber pipe for sucking and discharge the fecal. |
. Volume of fecal tank body: 6,000Litres carbon steel 6mm thickness
With vacuum suction pump.
Strength heads, with liquid level indicator. With rubber pipe for sucking and discharge the fecal.
Length: 6m
Fecal Suction Tanker Truck Offical Website: www.runlitruck.com

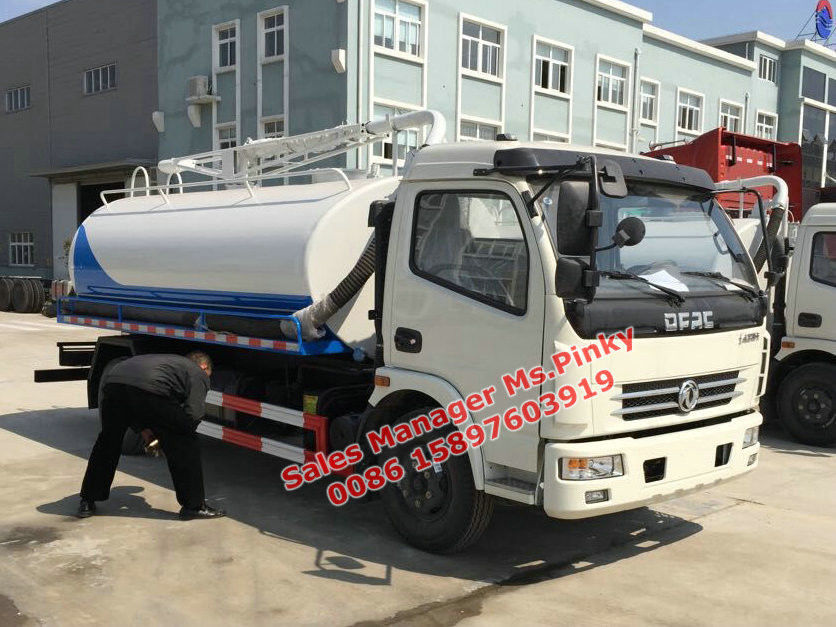

Detail photos OF Dongfeng 5Tons Fecal Suction Tank Trucks :
the Detail Photos of Fecal Suction tanker truck for equipment:
Characteristic for 5Tons Fecal Suction Tank Trucks :
1.the fecal suction truck include power take off, transmission, vacuum suction fecal pump, water separator, oil and gas separator, multi-way valve, suspender, fecal tank, discharge valve, water tank, fecal level indicator, vacuum pressure meter, pipe system and so on.
2. Self-discharge and self-suction.
3. The fecal suction pipe can rotate 360 degree;
4. Fill tank all time ≤10min, long service life, and high working speed, convenient transportation.
5. Suitable for collecting and transport manure, biogas slurry, mud, oil and other liquid goods.
our factory producing equipment :
Automatic Welding Line machine for Horizontal and Vertical Weld Line to keep good quality products
Our Partner , customer from Different Country:
Our Company License:
More information, please contat with Ms.Pinky
Welcome to Visit our factor in Suizhou City, Hubei Province!
