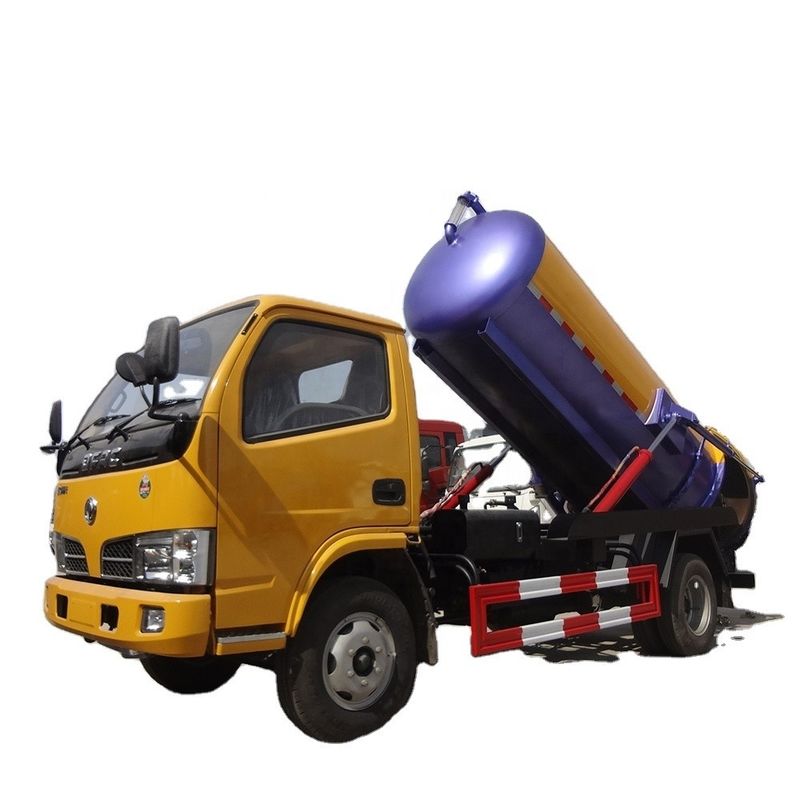

DFAC 4x2 4 cubic meter sewage sucking truck
Why choose this DFAC septic truck :
1. Dongfeng engine, 4 cylinders, engine power 95hp, meet euro 3 or Euro4 emission standard.
2. Tank body is high quality carbon steel, famous brand vacuum pump.
3. Large loading capacity, the body could make 3000 liters to 5000 liters.
4. It's used for dredging the sevage line, it's strong to wash. According to the requirement, it can install the high-pressure vacuum pump, Time for full suction<5min
|
sewage sucking truck System Specification
|
|
Tank
|
|
|
Tank Capacity (m3)
|
3-5
|
|
Tank Material
|
Q235A carbon steel (Stainless steel is optional)
|
|
Tank Shape
|
Roundness
|
|
Tank Size ( length * diameter)(mm)
|
3500*1500
|
|
Vacuum pump
|
|
|
Model
|
China famous WEILONG (Optional)
|
|
Max Vertical Suction (m)
|
≥8
|
|
Absolute Working Pressure (pa)
|
8500
|
|
Rated Speed
|
500
|
|
Rated Pumping Speed (L/s)
|
98
|
|
Pump inlet diameter (mm)
|
50
|
|
Container Filling Time (s)
|
≤5
|
|
Container Emptying time (s)
|
≤5
|
|
Chassis Specification
|
|
Truck Model
|
EQ1060
|
|
Engine
|
|
|
Model
|
CY4102-C3F
|
|
Type
|
Four-cylinder, water-cooled, mechanical injection
|
|
Rated power (Hp)
|
95
|
|
Transmission
|
|
|
Model
|
DONGFENG
|
|
Type
|
5 Forward & 1 Reverse Speed
|
|
Travelling
|
|
|
Drive Model
|
4 x 2
|
|
Steering Wheel Position
|
Left hand drive
|
|
Max. Travelling speed
|
95
|
|
Dimension do
|
|
|
Overall Size (mm)
|
5850x 2200 x 2950
|
|
Tyre Size
|
7.00-16
|
|
Wheel Base(mm)
|
3300
|
|
Weight
|
|
|
Curb Weight (kg)
|
4600
|
|
Payload Capacity (kg)
|
4000
|
|
Super Tank: Head and the tank made by a molding, thickening, anti-high-pressure.
Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates.
Vacuum System: Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing debris above or below liquid surfaces.
Engaged and disengaged from drivers cab.
Tank Mounting: The truck will be equipped at our expense with a sub frame according to truck
manufacturer’s prescriptions.
Painting: All steel parts are sand blasted before painting.
One anti-corrosion and zinc-rich primer and final painting at customer’s choice of colour.All steel parts are steel blasted before painting. Paint markers according to customer’s demand.
Suitable for the transport of non-hazardous waste products and built according to the design rules for vacuum operated waste tankers
|
