Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                10 Wheel Sewage Suction Truck, Dongfeng Cleaning Sewage Suction Truck


Transmission Type:	Manual	Condition:	New
Emission Standard:	Euro 3	Fuel Type:	Diesel
Tank Volume:	15000L	Size:	960024903350
Horsepower:	251-350HP	Gross Vehicle Weight:	20-25T, 25000
After-sales Service Provided:	Overseas Call Centers, Free Spare Parts, Onsite Installation	Capacity (Load):	11 - 20T
Color:	Optional	Chassis Brand:	Dongfeng Foton Forland Howo Faw
Function:	High Pressure Dredging Jetting	Tank Material:	Q235 Carbon Steel
WHEELBASE:	4650+1300	Pump:	Special Vacuum Pump
Drive Type:	6x4	Engine:	Cummins

Transmission Type:	Manual
Condition:	New
Emission Standard:	Euro 3
Fuel Type:	Diesel
Tank Volume:	15000L
Size:	960024903350
Horsepower:	251-350HP
Gross Vehicle Weight:	20-25T, 25000
After-sales Service Provided:	Overseas Call Centers, Free Spare Parts, Onsite Installation
Capacity (Load):	11 - 20T
Color:	Optional
Chassis Brand:	Dongfeng Foton Forland Howo Faw
Function:	High Pressure Dredging Jetting
Tank Material:	Q235 Carbon Steel
WHEELBASE:	4650+1300
Pump:	Special Vacuum Pump
Drive Type:	6x4
Engine:	Cummins

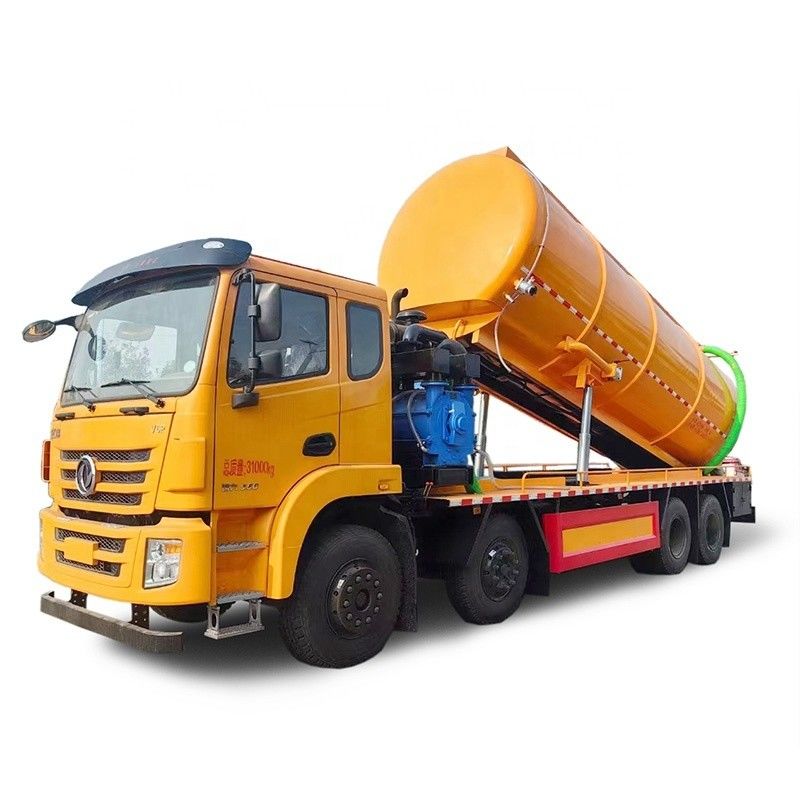

Dongfeng High Pressure Cleaning Sewage Suction Truck 10 Wheel 15000liters

Product Description

Dongfeng High Pressure Cleaning Sewage Suction Truck 10 Wheel 15000liters 0

tem	unit	parameter
Vehicle model		Dongfeng 6x4 Sewage Suction Truck
Chassis model		DFL1251GLJ5
Overall dimensions	mm	9600×2490×3350
Fact cubage	L	15000
Mass in working order	kg	Appro×11505
Body internal dimensions	mm	6000×1800(Length×diameter)
Wheel base		4350+1300
F/R track base		1940/1860
Approach/departure angle	°	28/15
Exhaust/kw	ml/kw	5900/155
Max speed	km/h	85
Tire specification	11.00R20	Engine type	B210-33
Traction system	6×4	transmission	6-speed with over drive
Number of axles	3	Electric system	24v
Operation control system	Electrically hydraulic control	Allowable passengers in cab	3
Equipment	Equipped with special vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise)
	Equipped with power take off, transmission shaft, high pressure sewage tank, pipe network, sewage pipe for observing and cleanout equipment
	Time for full sucktion<5min
Engine	DongFeng Cummins Environmental Protection, diesel engine,210 hp.
Production cycle	30-35 days
Warranty	12 month,from the date of supply
