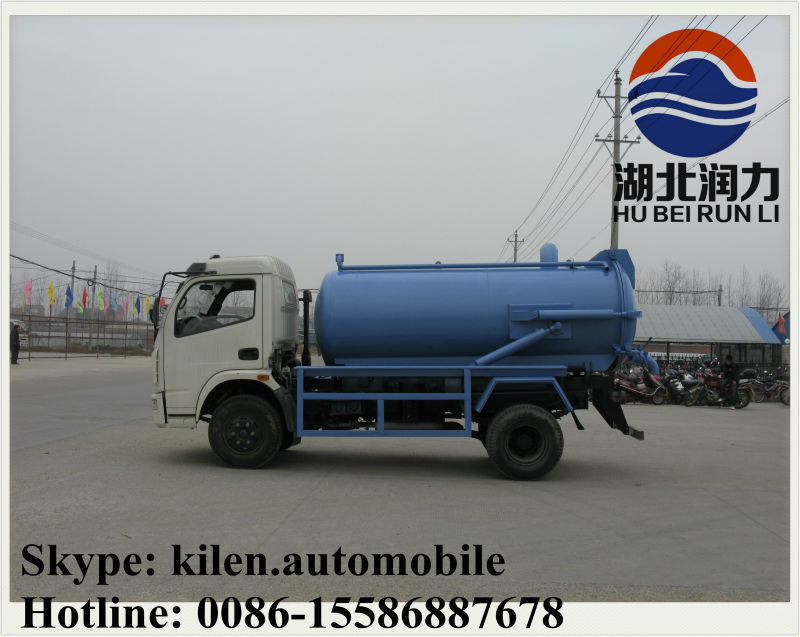

DFAC 4x2 Small Cesspool Truck Septic Cleaning Truck Left Hand Drive

cesspool truck  Suction System Specification

Tank

Tank Capacity (m3)

3

Tank Material

Q235A carbon steel  (Stainless steel is optional)

Tank Shape

Roundness

Tank Size ( length * diameter)(mm)

3500*1500

Vacuum pump

Model

China famous WEILONG (Optional)

Max Vertical Suction (m)

≥8

Absolute Working Pressure  (pa)

8500

Rated Speed

500

Rated Pumping Speed (L/s)

98

Pump inlet diameter (mm)

50

Container Filling Time (s)

≤5

Container Emptying time (s)

≤5

Chassis Specification

Truck Model

EQ1060

Engine

Model

CY4102-C3F

Type

Four-cylinder, water-cooled, mechanical injection

Rated power (Hp)

95

Transmission

Model

DONGFENG

Type

5 Forward & 1 Reverse Speed

Travelling

Drive Model

4 x 2

Steering Wheel Position

Left hand drive

Max. Travelling speed

95

Dimension do

Overall Size (mm)

5850x 2200 x 2950

Tyre Size

7.00-16

Wheel Base(mm)

3300

Weight

Curb Weight (kg)

4600

Payload Capacity (kg)

4000

 Super Tank:  Head and the tank made by a molding, thickening, anti-high-pressure.

Sub frame: Full sub-frame with flexible mounting fixed to the truck chassis by horse bolts. Sub-frame and chassis medium with wooden plates.

Vacuum System:  Liquid ring vacuum pump, is driven from the PTO on the gearbox, provides high airflows along with high vacuum levels for removing debris above or below liquid surfaces.

    Engaged and disengaged from drivers cab.

Tank Mounting:  The truck will be equipped at our expense with a sub frame according to truck

manufacturer’s prescriptions.

Painting:  All steel parts are sand blasted before painting.

    One anti-corrosion and zinc-rich primer and final painting at customer’s choice of colour.All steel parts are steel blasted before painting.  Paint markers according to customer’s demand.

    Suitable for the transport of non-hazardous waste products and built according to the design rules for vacuum operated waste tankers
