Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                isuzu aerial platform truck, isuzu truck mounted aerial work platform, 4x2 aerial platform truck


Transmission Type:	Manual	Condition:	New
Emission Standard:	EURO 5	Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	599519603000mm	After-sales Service Provided:	Onsite Installation, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Horsepower:	150-250HP	Engine Capacity:	4 - 6L
Fuel Tank Capacity:	100-200L	Control System:	Hydraulic Control Aerial Platform Truck
Drive Type:	4*2 LHD/RHD	Bucket Max Height:	20.3m/34.3m/45.3m
Color:	Requirements	Vehicle Name:	Aerial Operation Truck
Lift Mechanism:	Telescoping Lift	Outrigger Lateral Span:	Front5500mm /back5500mm
Standing Legs:	Front V And Rear V Single Leg	Degree Of The Overturn:	360°

Transmission Type:	Manual
Condition:	New
Emission Standard:	EURO 5
Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	599519603000mm
After-sales Service Provided:	Onsite Installation, Field Installation, Commissioning And Training, Field Maintenance And Repair Service
Horsepower:	150-250HP
Engine Capacity:	4 - 6L
Fuel Tank Capacity:	100-200L
Control System:	Hydraulic Control Aerial Platform Truck
Drive Type:	4*2 LHD/RHD
Bucket Max Height:	20.3m/34.3m/45.3m
Color:	Requirements
Vehicle Name:	Aerial Operation Truck
Lift Mechanism:	Telescoping Lift
Outrigger Lateral Span:	Front5500mm /back5500mm
Standing Legs:	Front V And Rear V Single Leg
Degree Of The Overturn:	360°

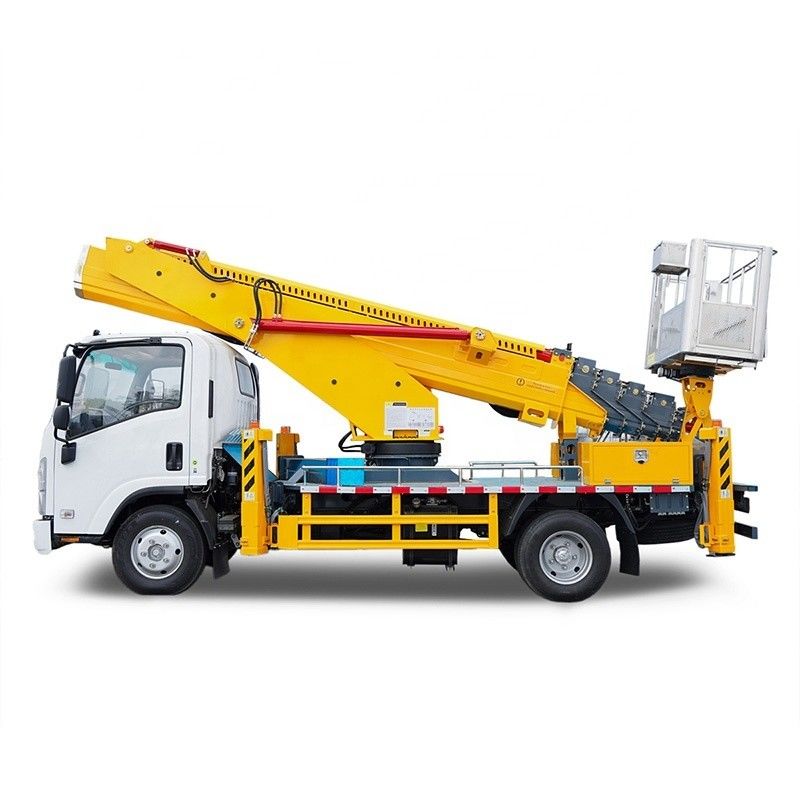

Direct Factory ISUZU 4x2 27 Meters 32 Meters Aerial Platform Truck

Product Description

Direct Factory ISUZU 4x2 27 Meters 32 Meters Aerial Platform Truck 0

Vehicle information Items	Technical parameters
Chassis model	QL1040A6FAY
Brand of chassis	ISUZU 4x2
Hand driven	Left hand
Overall dimensions ( L * W * H)	5995×1960×3000m
Lifting height	27 meters
Lifting weight	200 KGS
Wheel base	2795 mm
Tire	6.50R16LT 10PR (6+1 spare)
Engine	4KH1CN5LS
Emission Standard	Euro V
Transmission	MSB Five speed
Traction system	4x2
Number of axles	2
Electric system	24V
Displacement	72kw/2999ml
Engine horsepower	98 hp
Axle load	2.0tons (front)/4-4.8tons (rear)
Approach angle /Departure angle	20/12
Cabin seat	2
Max.speed	103 km/h
Operation control system	Steering wheel
Equipment	Air-condition/Radio/USB/Power steering

Standard Equipment	Equipped with engine device, emergence power units
Technical parameters	Boom	Five hexagonal arms, synchronous telescopic
	Max operation height	27 meters
	Max operation rear	21 meters
	Max lifting height side	18 meters
	Working platform rating loading	200 kg
	Working platform dimension	1600×650×1150mm
	Degree of the overturn:	360°turning(left or right)
	Standing Legs	Front V and rear V single leg
	Leg span	Horizontal	5500 mm
		vertical	5500 mm
