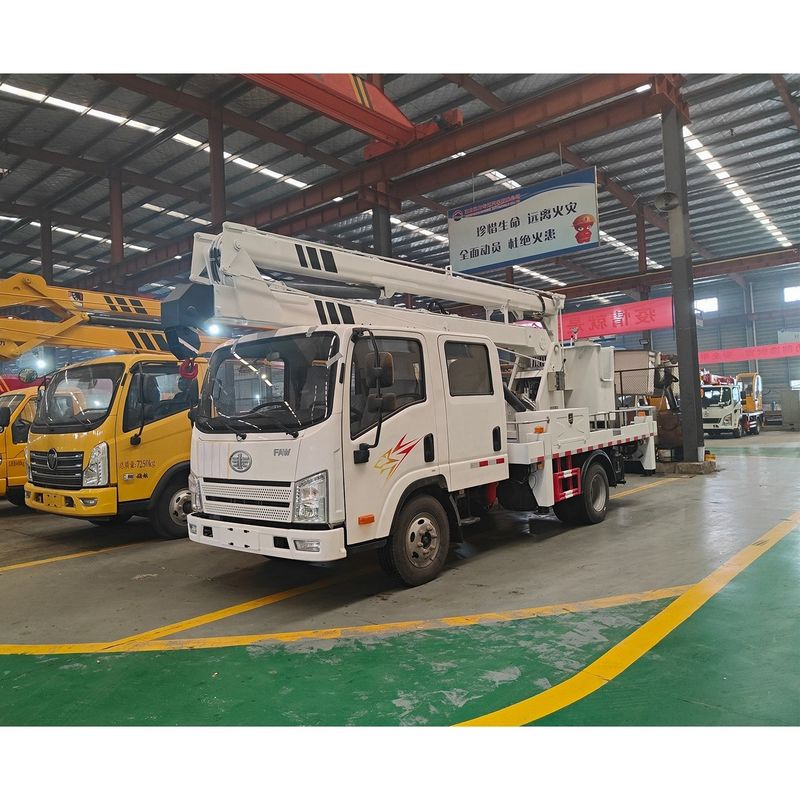

FAW Double Cabin Hand Operated Aerial Lift Truck Euro 3 14 Meters 4x2

Product Details

Place of Origin: Hubei, China

Brand Name: SCS

Payment & Shipping Terms

Price: CN¥112,075.85-126,537.25/units

Packaging Details: Standard export package

Supply Ability: 200 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Hand Operated Aerial Lift Truck, Aerial Lift Truck Euro 3, 14 Meters Hand Operated Aerial Lift Truck


Transmission Type:	Manual	Condition:	New
Emission Standard:	Euro 3	Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	599519953310	After-sales Service Provided:	Onsite Installation, Video Technical Support, Online Support
Horsepower:	< 150hp	Engine Capacity:	4 - 6L
Color:	White	Max Working Height:	14 Meters
Drive Type:	4X2	Certificate:	CCC ISO9001
Turntable Rotation:	360	Truck Type:	14m Aerial Work Platform Truck
Power Supply:	Engine	Warranty:	12 Month
Material:	High Tensile Steel	Port:	Shanghai

Transmission Type:	Manual
Condition:	New
Emission Standard:	Euro 3
Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	599519953310
After-sales Service Provided:	Onsite Installation, Video Technical Support, Online Support
Horsepower:	< 150hp
Engine Capacity:	4 - 6L
Color:	White
Max Working Height:	14 Meters
Drive Type:	4X2
Certificate:	CCC ISO9001
Turntable Rotation:	360
Truck Type:	14m Aerial Work Platform Truck
Power Supply:	Engine
Warranty:	12 Month
Material:	High Tensile Steel
Port:	Shanghai

FAW Double Cabin Hand Operated Aerial Lift Truck Euro 3 14 Meters 4x2

Hot FAW 4x2 double cabin 14 meters hand operated lift truck

Product Description

Drive Model	4X2
Chassis	CA1040P40K
Vehicle Main Dimensions	Dimensions(L x W x H)mm		5995×1995×3310
	Wheel base (mm)		2400/3360
	Overhang (front/rear) (mm)		1580/2410
	Wheel track (front/rear) (mm)		1940/1860
	Approach/Departure angle(°)		34/20
Weight in KGS	GVW.		11750
	Curb Weight		12180
Max. driving speed(km/h)			88
Engine		Model	4DW81-49
		Type	4-stroke direct injection , 4 -cylinder in-line with water cooling, turbo-charging and inter-cooling
		Horse Power(HP)	116
		Emission standard	Euro II
Gearbox		5 forwards & 1 reverse
Clutch		Reinforced diaphragm clutch
Steering Gear		Power steering, hydraulic steering with power assistance
Fuel tank (L)		120L
Tire		6.00-15 nylon tire, 6pieces+1 spare tire
Brakes		Service brake: dual circuit compressed air brake
cab:		3
Max. Working Height		16-22m
Aerial Platform Rated Capacity		200kg
Hydraulic Outriggers		4 pcs, H-type; Hydraulically extend and retract
Boom and Swing		Hydraulic actuated and controlled, 360° continuous rotation
Aerial Platform Control Method		Control both on the deck and in the aerial platform
Safety Device		Relief valve, balance valve, double-way hydraulic lock, motor emergency system etc.

FAW Double Cabin Hand Operated Aerial Lift Truck Euro 3 14 Meters 4x2 0
