Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                euro 6 high altitude lift truck, euro 6 high altitude operation truck, remote control high altitude lift truck


Transmission Type:	Manual	Condition:	New
Emission Standard:	Euro 6	Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	599820003050	After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support
Horsepower:	< 150hp	Engine Capacity:	< 4L
Fuel Tank Capacity:	≤100L	Control System:	Remote Control
Working Height:	8-45m Option	COLOR:	Customer's Requirement

Transmission Type:	Manual
Condition:	New
Emission Standard:	Euro 6
Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	599820003050
After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support
Horsepower:	< 150hp
Engine Capacity:	< 4L
Fuel Tank Capacity:	≤100L
Control System:	Remote Control
Working Height:	8-45m Option
COLOR:	Customer's Requirement

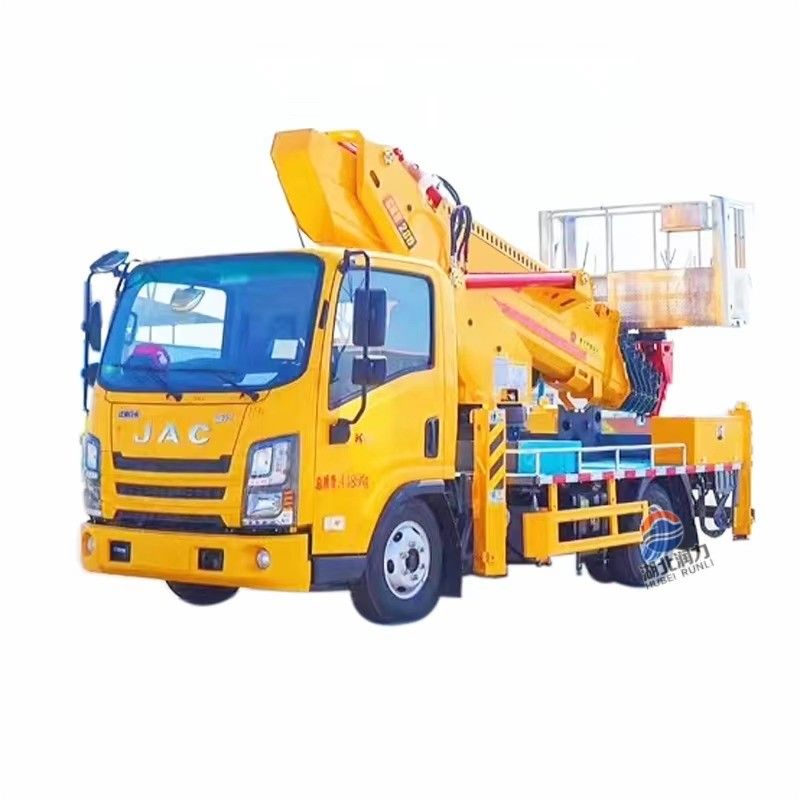

JAC 4*2 Aerial Platform Truck High-altitude Operation Truck Elevated Operation

JAC 4*2 Aerial Platform Truck High-altitude Operation Truck Elevated Operation 0

The configuration description mainly consists of configuration

The main components and configurations of SCS5045JGKJX6 high-altitude work vehicle
Component Name	Brief description
chassis	JAC Class II chassis, wheelbase 3360mm
engine	maximum power 89kw, 120 horsepower
Driver's cab	Single row seat, with 2 passengers allowed, and the driver's cabin equipped with air conditioning and storage systems
Fence and walkway board	Stainless steel toolbox, aluminum alloy anti slip walkway, stainless steel fence
Power take-off system	Pneumatic control, gear pump directly connected to power take-off
Work Platform	one thousand and four hundred × seven hundred × 1100 mm, rated load 200kg, double person steel work platform (expandable to 2 meters)
Arm form	Six hexagonal arms and five synchronous telescopic arms
Pipeline layout form	External drum
Rotating device	The turntable rotates continuously ± 360 °, and the worktable rotates ± 360 °
Outrigger	rear V-shaped, individually adjustable
operation	Rotary table hydraulic handle operation, standard wireless remote control operation, vehicle hydraulic handle operation, equipped with emergency electric hydraulic pump.
control system	Load sensitive electro-hydraulic proportional control, achieving stepless speed regulation
Leveling system	Hydrostatic leveling system

Basic functions and safety configuration

Basic functional safety configuration of high-altitude work vehicle: The work vehicle can achieve high-altitude work with a platform load of 200kg, a maximum working height of 27m, and a maximum working amplitude of 12m for the boom. The work platform is automatically leveled.
name	Brief description
Automatic interlocking device for boarding and alighting	Used for interlocking boarding and alighting, to prevent danger from accidental operation
Emergency electric hydraulic pump	When the chassis engine or hydraulic main pump malfunctions, operating the electric pump can send the workers back to the ground
Emergency stop device	Used for emergency stop operations
Spirit level	Can detect the tilting status of the entire vehicle in both horizontal and vertical directions
Engine ignition and shutdown	Engine ignition and shutdown control can be performed at both the turntable and remote control
Compound action	It can freely move in any action group, while achieving extension/contraction, amplitude rise/fall, turntable rotation, and worktable rotation.
Remote control (wireless)	Can perform wireless remote control operations over a wide range
