Multi-Purpose Aerial Platform , 360° Rotation for Bridge Inspection, Tree Pruning & Advertising

Product Details

Place of Origin: Hubei, China

Brand Name: SCS

Payment & Shipping Terms

Price: CN¥162,690.75/units 1-4 units

Get Best Price
Highlight:

21m high altitude lift truck

,

30m high altitude lift truck

,

21m high altitude operation truck

Transmission Type:
Manual
Condition:
New
Emission Standard:
Euro 3
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
5998*2000*3050mm
After-sales Service Provided:
Onsite Installation, Video Technical Support, Online Support
Horsepower:
< 150hp
Engine Capacity:
< 4L
Fuel Tank Capacity:
100-200L
Product Name:
Aerial Work Platform Vehicle
Description:
Vehicle Platform Truck
Engine:
D20TCFI12. Diesel 90KW
Truck Type:
Lift Bucket Truck
Control System:
Hydraulic Control Aerial Platform Truck
Maximum Operating Height:
30m
Max Working Radius:
21m
Working Platform Rated Load:
200KG
Wheelbase:
2800mm
Minimum Ground Clearance:
181mm
Transmission Type:
Manual
Condition:
New
Emission Standard:
Euro 3
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
5998*2000*3050mm
After-sales Service Provided:
Onsite Installation, Video Technical Support, Online Support
Horsepower:
< 150hp
Engine Capacity:
< 4L
Fuel Tank Capacity:
100-200L
Product Name:
Aerial Work Platform Vehicle
Description:
Vehicle Platform Truck
Engine:
D20TCFI12. Diesel 90KW
Truck Type:
Lift Bucket Truck
Control System:
Hydraulic Control Aerial Platform Truck
Maximum Operating Height:
30m
Max Working Radius:
21m
Working Platform Rated Load:
200KG
Wheelbase:
2800mm
Minimum Ground Clearance:
181mm
Multi-Purpose Aerial Platform , 360° Rotation for Bridge Inspection, Tree Pruning & Advertising
Product Description

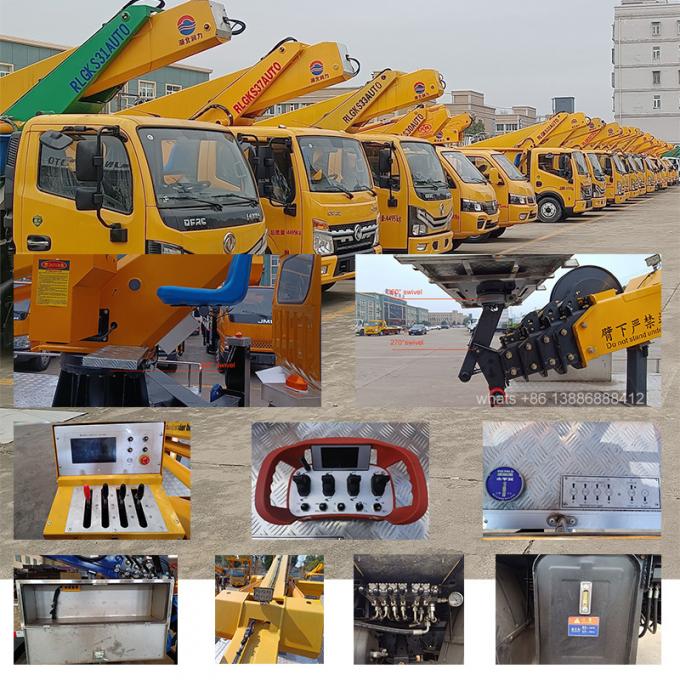

Manufacturing Showcase

Multi-Purpose Aerial Platform , 360° Rotation for Bridge Inspection, Tree Pruning & Advertising 6

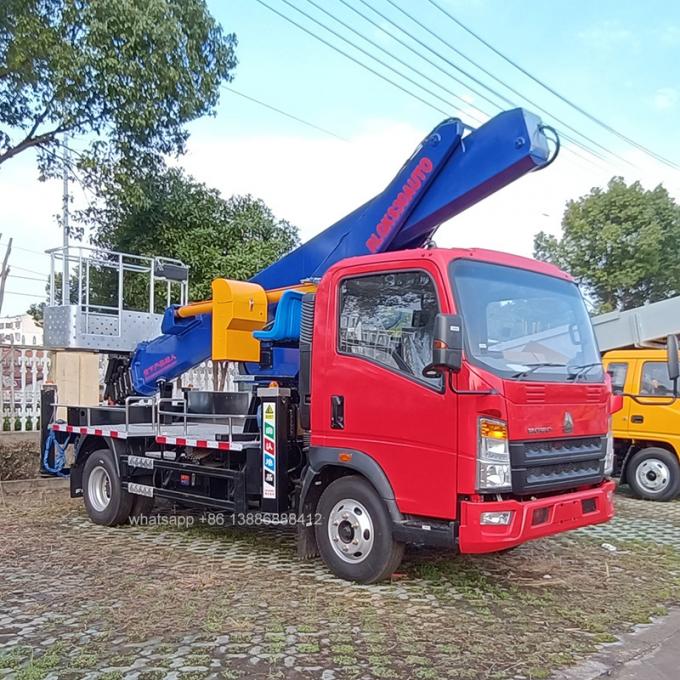

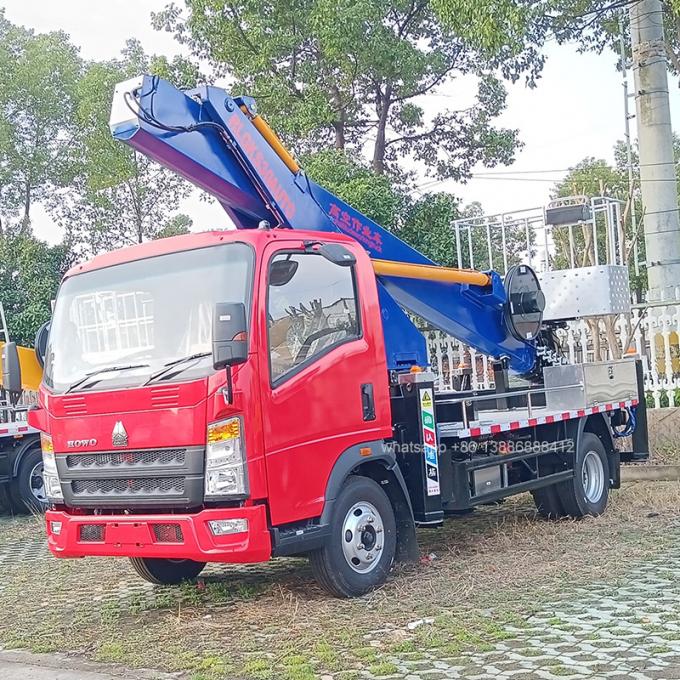

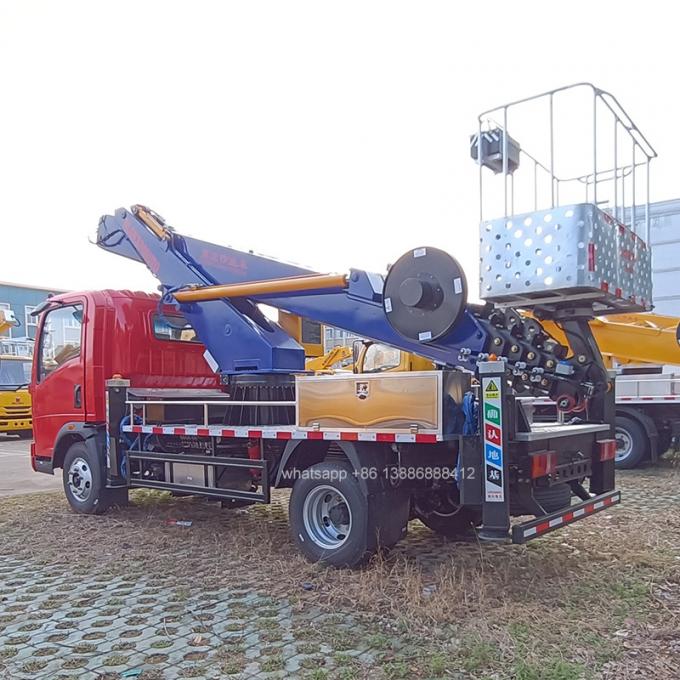

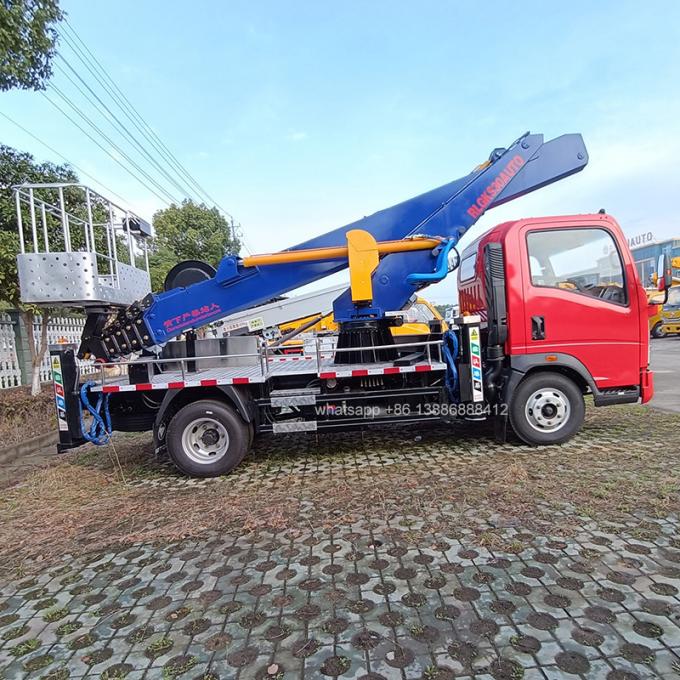

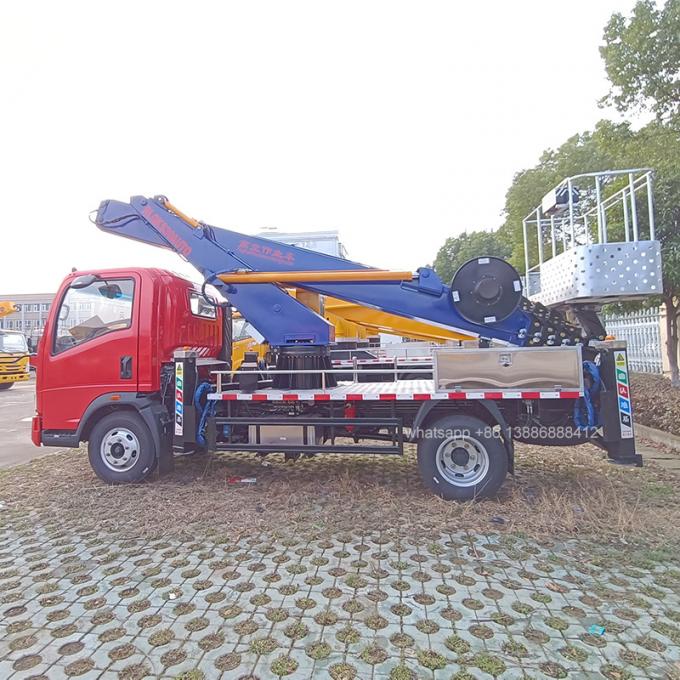

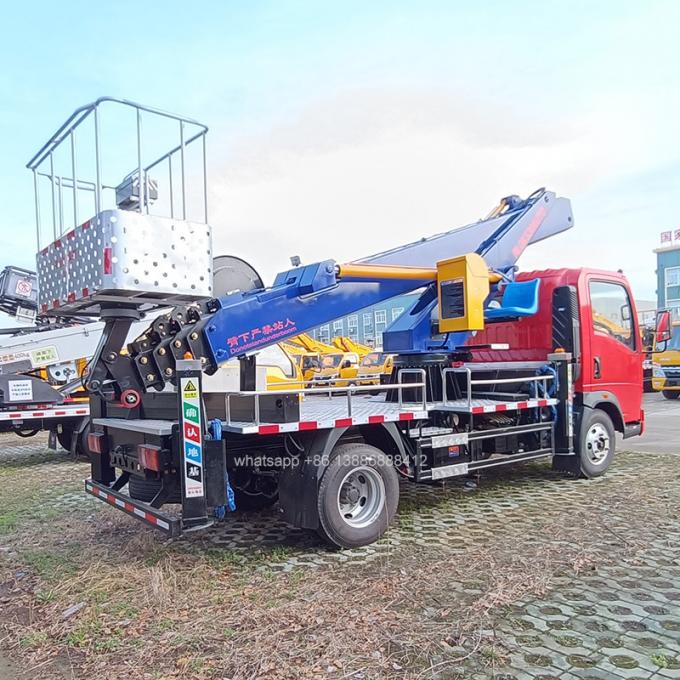

Product details display

Multi-Purpose Aerial Platform , 360° Rotation for Bridge Inspection, Tree Pruning & Advertising 8We have established partnerships with these chassis manufacturers and can customize the most suitable vehicle models tailored to your specific requirements.



Main Technical Parameters





Category

Parameter

Unit

Value

Dimensions

Total Length

mm

5998

Total Width

mm

2000

Total Height

mm

3050

Mass

Seating Capacity (including driver)

Person

2

Total Mass

kg

4495

Performance

Rated Load of Platform

kg

200

Maximum Working Height

m

30

Working Range at Max Height

m

3.1

Maximum Working Range (Rear)

m

21

Working Height at Max Range

m

5

Leg Span (Fully Extended)

Transverse

mm

5400

Longitudinal

mm

5400

Platform Rotation

°

±360°

Boom Extension Time

s

70–80

Boom Retraction Time

s

60–70

Horizontal Leg Extension Time

s

20–30

Travel Parameters

Maximum Speed

km/h

100

Approach/Departure Angle

°

19°/13°







We are one of China's leading manufacturers of aerial work platforms, renowned for our technical expertise and industrial innovation.We can produce all types of aerial work platforms (AWPs), and they have the following applications:

1. Construction & Building Maintenance

  • "Scissor Lift for Roof Repair and Facade Cleaning"

  • "Boom Lift for High-Rise Construction Work"

  • "CE Certified AWP for Industrial Building Maintenance"

2. Telecommunications & Utilities

  • "Mobile Elevating Work Platform (MEWP) for Power Line Installation"

  • "Tracked Aerial Platform for Off-Road Utility Repairs"

  • "Compact AWP for Telecommunication Tower Access"

3. Warehouse & Logistics

  • "Electric Aerial Platform for Warehouse Shelving Maintenance"

  • "Self-Propelled AWP for Inventory Management in Factories"

  • "Heavy-Duty Scissor Lift with 1000kg Capacity for Loading"

4. Film & Event Industry

  • "Spider Lift for Stage Lighting Installation in Tight Spaces"

  • "Silent AWP for Film Set Equipment Positioning"

  • "Portable Aerial Platform for Outdoor Event Setup"

5. Municipal Infrastructure

  • "Articulated Boom Lift for Streetlight Repair"

  • "Hydraulic AWP for Bridge Inspection and Painting"

  • "High-Reach Aerial Platform (42m) for Highway Signage Maintenance"

6. Retail & Commercial Spaces

  • "OEM AWP for Mall Decoration and Signboard Installation"

  • "Compact Spider Lift for Indoor Retail Display Setup"

  • "ANSI Certified Aerial Platform for Supermarket Lighting"






Packaging & Shipping

Multi-Purpose Aerial Platform , 360° Rotation for Bridge Inspection, Tree Pruning & Advertising 10

Packaging Details
Nude
Port
Shanghai  Tianjin  Qingdao etc.
Our Services

       Each of our products have quality assurance. For the parts within the scope of quality assurance, we  provide online remote assistance or offline maintenance according to the actual situation.

      We support vehicle customization, paint modification, parts customization, assembly and OEM, our factory is able to meet your requirements.

      We support both online and offline  visits. You are welcome to visit our company, and we will treat you with delicious Chinese food.

Company Information





Hubei Runli Special Purpose Vehicle Co., Ltd. was established in January 2009. It is a modern special purpose vehicle company that integrates research and development, manufacturing, sales, and service of various types of special purpose vehicles. It is a private enterprise that produces key special purpose vehicles under the Ministry of Industry and Information Technology and the Ministry of Commerce of China, and exports complete vehicles nationwide.



Scale & Honors

Total Area:                   The company currently occupies a total area of 110,000 square meters.

Reputation:                  For several consecutive years, it has been recognized as a “Contract-Abiding and Trustworthy Enterprise”.

Trademarks:              The Administration for Industry and Commerce granted the "Well-Known Trademark".

Brand Recognition:   Awarded the honorary title ofExcellent Quality, Satisfied Service, and Trusted Brand”.

Certification:                Recognized by the tax bureau as aHigh-Tech Enterprise

Market Position:          The aerial work platform has ranked  first in sales in Hubei Province.

National Recognition: Hubei Runli Special Purpose Vehicle Co., Ltd. has been selected as a national-level "Specialized, Refined, and New            Little Giant" enterprise in 2021.









Corporate Certifications and Honors



 Multi-Purpose Aerial Platform , 360° Rotation for Bridge Inspection, Tree Pruning & Advertising 12

 Multi-Purpose Aerial Platform , 360° Rotation for Bridge Inspection, Tree Pruning & Advertising 13







FAQ

 Q: Is it a manufacturing plant?

A: Yes, and we are one of China`s most capable and prominent specialized vehicle manufacturers, renowned for our expertise and advanced production capabilities in the industry.



Q: What are the payment terms?

A: Both T/T and L/C are acceptable.



Q: What is the warranty period and operation of our machines?

A: Our main machine enjoys a warranty period, and we provide videos for machine installation and operation.



Q: How long is your delivery time?

A: Normally, it takes 5-10 days for the goods to be in stock. Or, it is 15-20 days if the goods are not in stock, it depends on the quantity.



Q: How to make our business long-term and good relationship?

A: We keep good quality , favorable price and good after-sale service to ensure the benefit of customers.



Q: Do you have a certificate for your machine?

A: All of our products have SGS ,TUV, CE, IS09001 certifications etc.
