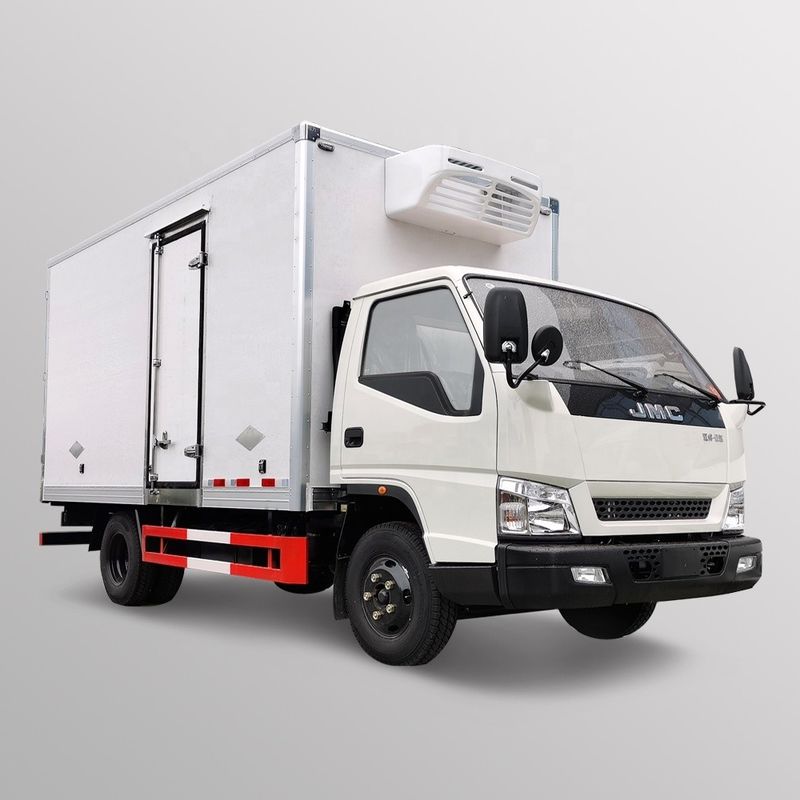

Japan Engine JMC 4x2 Reefer Vans Freezer Box Truck JX1041TGC23 J EURO 5

Product Details

Place of Origin: Hubei

Brand Name: JMC

Payment & Shipping Terms

Price: CN¥133,767.95/sets >=1 sets

Packaging Details: Nude packing,RO-RO ship,bulk ship,or by land for inland country

Supply Ability: 500 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                Japan Engine JMC 4x2 Reefer Vans, Freezer Box Truck JX1041TGC23, EURO 5 Freezer Box Truck


Model:	JX1041TGC23 J	Transmission Type:	Manual
Condition:	New	Horsepower:	< 150hp
Emission Standard:	EURO 5	Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	5995 * 1930 * 2900	Box Dimensions (L X W X H) (mm):	4150 * 1750 * 1720
Temperature Range:	-18 °C	Gross Vehicle Weight:	4495
After-sales Service Provided:	Video Technical Support, Return And Replacement, Online Support	Maximum Torque(Nm):	1500-2000Nm
Capacity (Load):	1-10T	Engine Capacity:	< 4L
Color:	White/blue	Chassis Brand:	DongFeng.FAW.Foton.Sino.JAC.I-VECO.Shacman
Drive Type:	4x2 LHD	Loading Capacity:	1000kg-50000kg
Refrigeration Unit:	International Top Brand	Van Material:	FRP(Fiber Reinforced Plastics)
Refrigerant:	HFC R404a	Warranty:	12 Months
Usage:	Frozen Meat Icecream Transport	Drive Cabin:	Single Row Cab
Port:	Shanghai

Model:	JX1041TGC23 J
Transmission Type:	Manual
Condition:	New
Horsepower:	< 150hp
Emission Standard:	EURO 5
Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	5995 * 1930 * 2900
Box Dimensions (L X W X H) (mm):	4150 * 1750 * 1720
Temperature Range:	-18 °C
Gross Vehicle Weight:	4495
After-sales Service Provided:	Video Technical Support, Return And Replacement, Online Support
Maximum Torque(Nm):	1500-2000Nm
Capacity (Load):	1-10T
Engine Capacity:	< 4L
Color:	White/blue
Chassis Brand:	DongFeng.FAW.Foton.Sino.JAC.I-VECO.Shacman
Drive Type:	4x2 LHD
Loading Capacity:	1000kg-50000kg
Refrigeration Unit:	International Top Brand
Van Material:	FRP(Fiber Reinforced Plastics)
Refrigerant:	HFC R404a
Warranty:	12 Months
Usage:	Frozen Meat Icecream Transport
Drive Cabin:	Single Row Cab
Port:	Shanghai

Japan Engine JMC 4x2 Reefer Vans Freezer Box Truck JX1041TGC23 J EURO 5

Product Description

The refrigerated trucks series mainly used for long-distance transportation of fruit, fish, meat, vegetables and other perishable goods, also it has refrigeration, heating and insulation these three functions.

Weight parameter	Rated load (kg)	1895	Overall dimension (mm)	5955×1880×2750
	Curb weight (kg)	2470	Box dimension (mm)	4210×1760×1730
	Actual max.load capacity(kg)	4000-5000	Wheel base (mm)	3360
Engine	Model	JX493ZLQ3A	Description of engine	4 cylinders,in line,turbocharged,water-cooled, intercooled
	Max.power(kw/hp)	75/102	Fuel type	Diesel
Performance	Max. vehicle speed (km/h)	100	Running angle(°)	Approach angle	27
	F/R overhang(mm)	1015/1580		Departure angle	15.3
	Emission standard	Euro-III	Drive type	4X2
Description of gearbox	JC528T6, 5 forward gears, 1 reverse gear		Steering type	LHD
Clutch	Diaphragm spring clutch		Brake system	Hydraulic brake system
Specification of tire	7.00-16		Number of tires	6+1
Frame	Stamping riveted structure		Number of leaf spring	7/4+5
Cab	Single row, 3 passengers allowable

Envelope material	75mm Interior and exterior fiberglass interlayer insulation material for polyurethane foam, envelope thickness of 75mm . .
Refrigeration units	With the United States Thermo King, the KV300-10 refrigeration of non-independent units, the lowest temperature of -18 °C.
Multi-temperature settings	Envelope may be the installation of the side door, folder repeat it at different temperature zones; car free configuration: fixtures such as cargo, cargo suspension, compartment shelves, insulation curtain, ventilation ducts; compartment back door hardware are made of stainless steel products. luxury and beauty. (Note: more installation costs another accounting)
