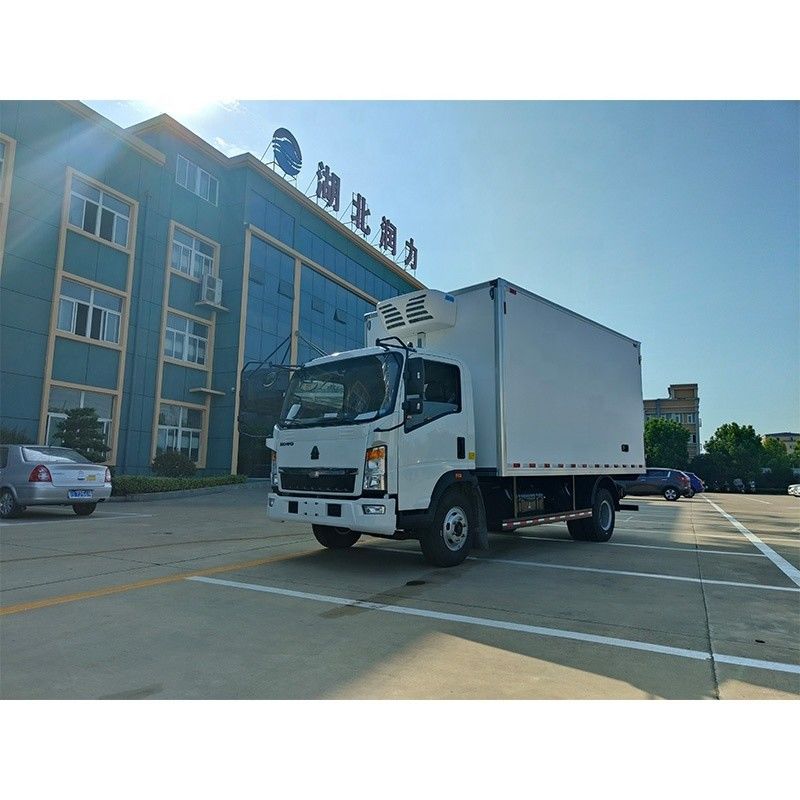

SINOTRUK Refrigeration Unit Truck 4x2 5ton Euro 3 SCS5043XLC

Product Details

Place of Origin: Hubei

Brand Name: SCS

Payment & Shipping Terms

Price: CN¥90,383.75/sets >=1 sets

Packaging Details: Nude packing,RO-RO ship,bulk ship,or by land for inland country

Supply Ability: 500 Set/Sets per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SINOTRUK Refrigeration Unit Truck 4x2, 4x2 5ton Refrigeration Unit Truck, SCS5043XLC Refrigeration Unit Truck


Model:	SCS5043XLC	Transmission Type:	Manual
Condition:	New	Horsepower:	< 150hp
Emission Standard:	Euro 3	Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	5995 * 1930 * 2900	Box Dimensions (L X W X H) (mm):	4150 * 1750 * 1720
Temperature Range:	-18 °C	Gross Vehicle Weight:	4495
After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts	Maximum Torque(Nm):	1000-1500Nm
Capacity (Load):	1-10T	Engine Capacity:	4 - 6L
Color:	White/blue	Application:	Transport Freezer Food
Chassis Brand:	FORLAND	Loading Capacity:	3 Tons
Refrigeration Unit:	Chinese Brand Optional	Wheelbase:	2600mm
Van Material:	Fiberglass Reinforce	Voltage:	12V
Transmission:	5 Front +1 Rear	Certificate:	ISO CCC
Port:	Shanghai

Model:	SCS5043XLC
Transmission Type:	Manual
Condition:	New
Horsepower:	< 150hp
Emission Standard:	Euro 3
Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	5995 * 1930 * 2900
Box Dimensions (L X W X H) (mm):	4150 * 1750 * 1720
Temperature Range:	-18 °C
Gross Vehicle Weight:	4495
After-sales Service Provided:	Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts
Maximum Torque(Nm):	1000-1500Nm
Capacity (Load):	1-10T
Engine Capacity:	4 - 6L
Color:	White/blue
Application:	Transport Freezer Food
Chassis Brand:	FORLAND
Loading Capacity:	3 Tons
Refrigeration Unit:	Chinese Brand Optional
Wheelbase:	2600mm
Van Material:	Fiberglass Reinforce
Voltage:	12V
Transmission:	5 Front +1 Rear
Certificate:	ISO CCC
Port:	Shanghai

SINOTRUK Refrigeration Unit Truck 4x2 5ton Euro 3 SCS5043XLC

SINOTRUK refrigeration unit truck-4*2 5ton for sale in fiji

The refrigerated trucks series mainly used for long-distance transportation of fruit, fish, meat, vegetables and other perishable goods, also it has refrigeration, heating and insulation these three functions.

Item			unit	parameter
Product Name				Refrigerator Truck
Chassis model				ZZ1107D3815C1
Overall dimensions			mm	699523103300
Van dimensions			mm	460021002200
	Total weight		kg	9900
	Payload weight		kg	5000-8000
	Wheel base		mm	3800
	Front/rear overhang			1130/1825
	Approach/departure angle		°	16/11
Exhaust/hp			ml/kw	4080/85
Max speed			km/h	95
Tire specification			8.25R16	Engine type	YN4102QBZL
Tire number			6+1(spare tire)	Fuel type	Diesel
Traction system			4×2	Transmission	WLY6T50C
Number of axles			2	Electric system	24v
Operation control system			Steering wheel	Allowable passengers in cab	2
Front axle 2700KGS, rear axle 7200KGS
Temperature(℃) : -10~-15
Back door / Van material: GRP outside, Color plate inside
Equipment		Air-condition/Radio, USB
Engine		Yunei engine co., ltd (Euro III)--4080 cc/116 hp
