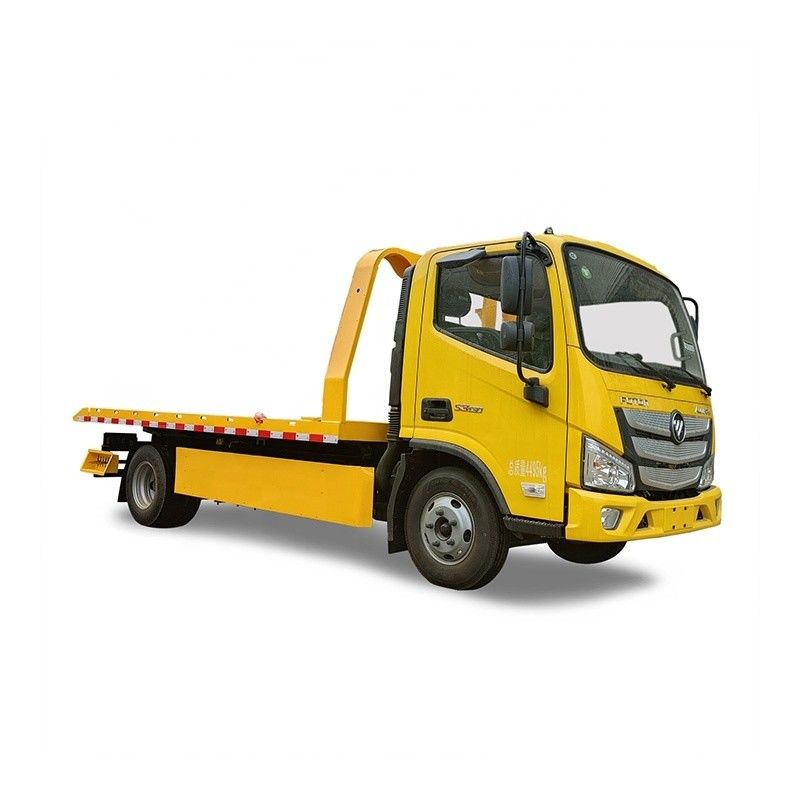

Foton Aumark Road Wrecker Truck 4x2 Flat Bed Recovery Truck Euro Ⅲ Standards

Vehicle model

AUMARK-T33

Cabin

Single row/W1800/left rudder

Whole vehicle main dimensions

Overall dimensions (LxWxH)mm

5875×1915×2230

Wheel base(mm)

3360

Weight data

Curb weight(kg)

2100

Gross vehicle weight(kg)

4485

Persons in cab

3

Whole vehicle main performance

Max. speed(km/h)

95

ENGINE

Model

BJ493ZLQV1

Emissions standards

EuroⅢ

Displacement(L)

2.771

Rated Power(kw/rpm)

80

Max torque (N.m/rpm)

280

Gearbox

Model

JC5-28

Front axle

Type/Mainreducetion ratio

2.2T

Rear axle

Type/Mainreducetion ratio

5.0T/6.142

Suspension

Front suspension/Leaf spring number

3+1

Rear suspension/Leaf spring number

6+7

Brake system

Service brake

Drum pneumatic braking

Parking brake

Central drum brake

Auxiliary brake

Engine exhaust brake

Wheels and tyre size

6+1/( 7.00R16)

Upload parameters

Lifting system

Maximum lifting weight(kg)

1800

Maximum lifting capacity at full extension(kg)

1330

After Joe distance (mm)

2540

Effective length of bracket (mm)

1640

Support arm telescopic stroke

1340

Telescopic stroke of bracket (mm)

7

The lower Angle of the bracket

-9.5

The maximum distance from the ground on the upper surface of the fully retracted cross arm (mm)

550

platform

Inner Length (mm)

5550

Inner Width (mm)

2220

Minimum inclination Angle of platform

8

Platform working stroke (mm)

2700

Platform height above ground (mm)

1070

Maximum bearing capacity of plate mechanism (kg)

3000

winch

Quantity

1

Rated traction per unit (kN)

40

Diameter of wire rope (mm)

φ11

Length of wire rope (m)

25

Capstan Diameter (mm)

φ110

Minimum linear speed of wire rope (m/min)

5

Basaic configuration

Hydraulic winch

Hydraulic control system

L-shaped tow arm

Hydraulic lock

High strength side panels

Alarm light (mounted on the gantry frame, removable

Lighting alarm light system

Lashing rope: 4 pieces

Training wheels

Take power.
