Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                sinotruk howo tow trucks, sinotruk howo wrecker truck, 50 ton tow trucks


Fuel Type:	Diesel	Emission Standard:	Euro 2
Condition:	New	Transmission Type:	Manual
Dimensions (L X W X H) (mm):	1126025003570	Product Name:	Rotator Tow Truck
Chassis Brand:	Dongfeng Sinotruk Faw Bei Ben Tow	Driving Type:	8*4
Usage:	Road Emergency Rescue	Warranty:	12 Months Guarantee
Certificate:	CCC ISO9001	Lifting Weight:	20ton 30ton 40ton 50ton
Engine Model:	WD615.47	Winch:	2*15 Tons KN
Color:	Customized

Fuel Type:	Diesel
Emission Standard:	Euro 2
Condition:	New
Transmission Type:	Manual
Dimensions (L X W X H) (mm):	1126025003570
Product Name:	Rotator Tow Truck
Chassis Brand:	Dongfeng Sinotruk Faw Bei Ben Tow
Driving Type:	8*4
Usage:	Road Emergency Rescue
Warranty:	12 Months Guarantee
Certificate:	CCC ISO9001
Lifting Weight:	20ton 30ton 40ton 50ton
Engine Model:	WD615.47
Winch:	2*15 Tons KN
Color:	Customized

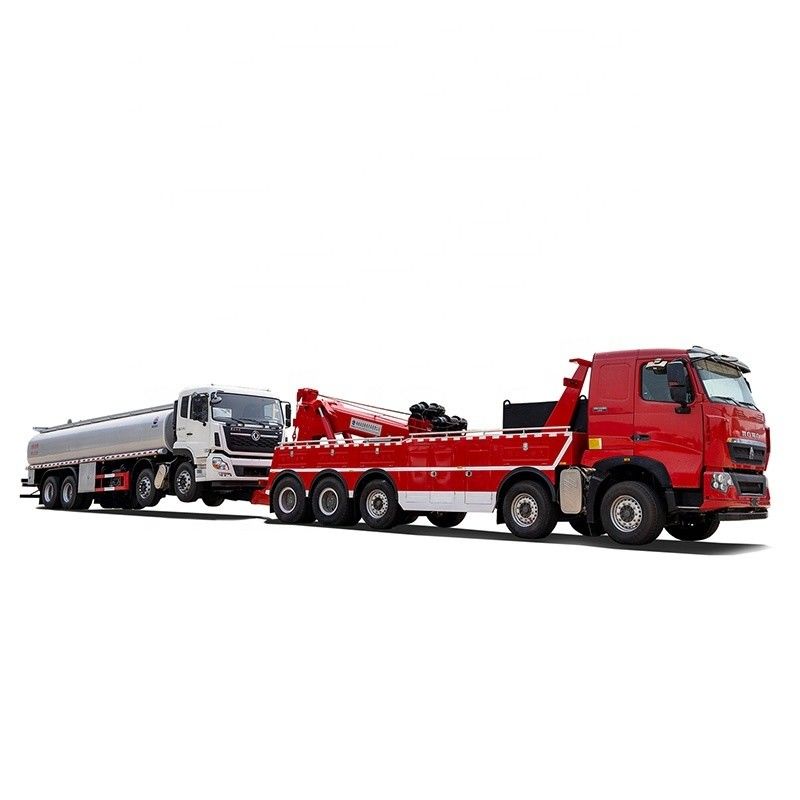

SINOTRUK HOWO 10x4 Howo Wrecker Truck Body 50 Ton

Product Description

SINOTRUK HOWO 10x4 Howo Wrecker Truck Body 50 Ton 0

Cabin	A/C installed,2~3 persons,LHD
Model	SCS5310TQZZ
No load(kg)	Total Weight(kgs)	31000
	Kerb weight(kgs)	28000
	Front axle	VGD95 drum brake
	Rear axle(double)	MCP16ZG
Full load	Max. Overall Weight	30000
Overall Dimensions(mm)	Length	11550
	Width	2500
	Height	3570
Wheel base(mm)	1950+3625+1375+1350mm
Driving Model	10*4
Tyre	12.00R20
Tank dimension	400
Engine	Model	MC11.44-60
	Power(kw)	324
	Displacement(mL)	11596
Transmission	HW19712,12 forwards&1 reverses

Wrecker Equipment
Max. Towing Weight(kg)		50000
Lifting System	Max. Lifting Weight(kg)	25000
	Max. Lifting Weight under all extension(kg)	9500
	Lifting Weight in Situ(kg)	18000
	Max. Ground Distance(mm)	900
Hoisting System	Max. Hoisting Weight(kg)	38000
	Max. Hoisting Weight under all extension(kg)	8000
	Extension Distance of Oil Cylinder(mm)	6000
	Length of crane Arm(mm)	12000
	Max. Hoisting Height(mm)	6500
Winch	No.	2
	Curb Traction/Per(KN)	100x2
	DN of Steel Rope(mm)	20
	Length of Steel Rope(m)	45*2
	Min. Line Speed(m/min)	5
Outrigger	No.	2
	Outrigger Span(mm)	1440
	Landing Strength(KN)	80*2
Crane	360°rotate with three arms
Lifting Forks	4 pairs
Lifting fork base	1 pair
Jump-start cables	12~24 Volts
Electric system	Rear working lamp(stop,tail,turning)	3
	Revolving beacon	1
	Lamps for license plate/warning lamp	1 set
