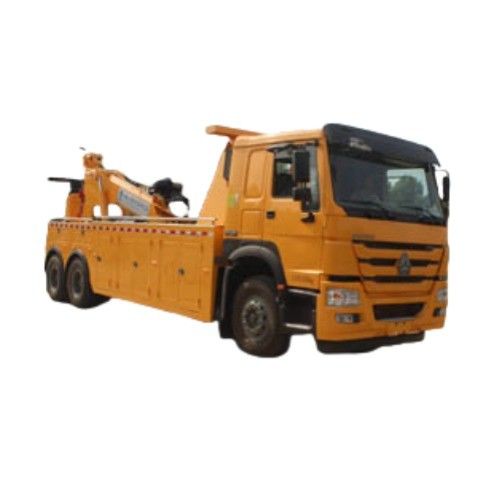

Factory Direct Sale Wrecker Truck With Huge Power at Low

Runzhixing brand SCS5252TQZZ6 wrecker

Main technical parameters of Runzhixing brand SCS5252TQZZ6 wrecker

Overall dimensions:

9580,10780*2500,2550*3250,3750 (mm)

container size:

(mm)

Total mass:

25000

Load mass utilization coefficient:

Curb quality:

2,150,022,900

Rated load mass:

Cab:

Front passenger:

2,3

Approach angle/Departure Angle:

17/23

Front suspension/rear suspension:

1500/1945,1500/1920,1500/2445,1500/2420,1500/2780,1500/2755,1500/3025,1500/3000

Axial load:

7000/18000 (two-axis group)

Wheelbase:

4325+1350,4300+1400,4625+1350,4600+1400,5225+1350,5200+1400,5825+1350,5800+1400

Number of axes:

three

* * Speed:

80,89,101

Fuel consumption:

Number of springs:

10/12,4/12,4/5,10/-,4/-

Number of tires:

10

Tyre size:

11.00R20,12.00R20 16PR,12R22.5,295/80R22.5,315/80r 22.5 18PR/315/80r 22.5 16PR

Front track:

20,222,041

Rear track:

1860/1860

Engine parameters

Engine model:

Engine production enterprise

Displacement (ml)

Power (kW)/horsepower (PS):

MC11.40-60

* * Heavy Duty Truck Group Co., Ltd.

10518

297

MC11.44-60

* * Heavy Duty Truck Group Co., Ltd.

10518

327

MC11.36-60

* * Heavy Duty Truck Group Co., Ltd.

10518

268

WP10H400E62

Weichai Power Company Limited

9480

294

WP10.5H430E62

Weichai Power Company Limited

10518

316

WP10.5H460E62

Weichai Power Company Limited

10518

338

WP9H350E62

Weichai Power Company Limited

8800

257

Vehicle fuel parameters

Fuel type:

diesel

According to the standard:

Chassis emission standard

GB17691-2018 Country VI

other

The vehicle is used for road fault vehicles, urban illegal vehicles and emergency rescue; The main device is the supporting arm. The cab is optional with the chassis. When it is installed for 20 days, the kerb mass is 21500kg, and the lifting mass is 3,370 kg, and 3,305 kg corresponds to 2 or 3 people one by one. When it is installed for 25 days, the curb weight is 22900kg, the lifting weight is 1,970 kg, and 1,905 kg corresponds to 2 or 3 people. The side and rear protection are replaced by special devices, and the height of the rear special device is 400 mm from the ground. The manufacturer/model of ABS system * * device is Webber (Shanghai) Management Co., Ltd. /4460046300. When the speed limiter is installed with the chassis, the speed * * is 89. Optional appearance style.
