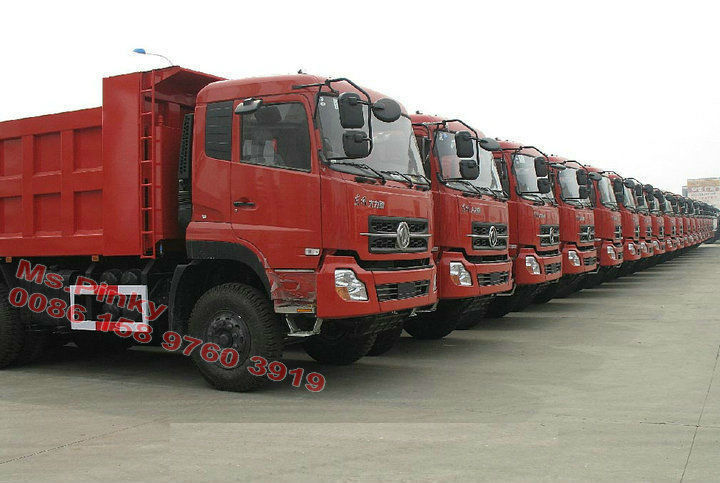

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper

Name: 35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper
Brand: Hubei Runli Special Automobile Co., Ltd.
SKU: DFL3258A3
Price: 313.00 USD
Availability: InStock

Product Details

Place of Origin: Hubei, China

Brand Name: Dongfeng Tipper Truck

Model Number: DFL3258A3

Payment & Shipping Terms

Minimum Order Quantity: 2 units

Price: CN¥274,766.60-353,581.23/units

Packaging Details: naked package , waxed before delivery, Shipping by RORO or Bulk shipment, please directly contact with Ms Pinky. Hotline:0086 15897603919

Supply Ability: 200 Unit/Units per Month

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                dongfeng dump truck, dongfeng dump tipper truck, euro 3 dump truck


Condition:	New	Horsepower:	251 - 350hp
Emission Standard:	Euro 3	Fuel Type:	Diesel
Engine Capacity:	> 8L	Transmission Type:	Manual
Dimensions (L X W X H) (mm):	847025003484	Gross Vehicle Weight:	25000
Capacity (Load):	31 - 40T	Drive Wheel:	6x4
Color:	Cherry Red, Yellow, Blue, White	Frame:	3008080mm(inner 280707mm)
Tyre::	12R22.5	Offical Website:	Www.runlitruck.com
Chasis Optional:	Sinotruck HOWO, BEIBEN NORTH BENZ,FOTON,DONGFENG DFL,Hino,Jiefang Faw	Driving Type:	42 , 44,64, 66,84,84 All Wheel Drive Off Raod
Port:	Shanghai,Tianjin,longkou Or Other China Port

Condition:	New
Horsepower:	251 - 350hp
Emission Standard:	Euro 3
Fuel Type:	Diesel
Engine Capacity:	> 8L
Transmission Type:	Manual
Dimensions (L X W X H) (mm):	847025003484
Gross Vehicle Weight:	25000
Capacity (Load):	31 - 40T
Drive Wheel:	6x4
Color:	Cherry Red, Yellow, Blue, White
Frame:	3008080mm(inner 280707mm)
Tyre::	12R22.5
Offical Website:	Www.runlitruck.com
Chasis Optional:	Sinotruck HOWO, BEIBEN NORTH BENZ,FOTON,DONGFENG DFL,Hino,Jiefang Faw
Driving Type:	42 , 44,64, 66,84,84 All Wheel Drive Off Raod
Port:	Shanghai,Tianjin,longkou Or Other China Port

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper Call 0086 15897603919

The specification of Dongfeng 10 Wheels 35Tons Tipper Truck:

Application conditions: steel, iron ore, iron ore mining, iron ore and other high density in short-distance transport and short-distance transport of goods.

The Dumper truck features: Dongfeng New cabin Heavy duty dumper truck using the Cummins engine, large capacity, strong power, large torque at low speed, low fuel consumption, high reliability; the Shaanxi teeth 9 forwards transmission, convenient operation, high strength, long service life of the gear; the use of 13 tons of Dongfeng wheel reducer bridge, steel bridge shell, strong carrying capacity, large clearance, good passing ability, can fully meet the iron powder, iron ore short-distance transport, suitable for mountain road, road, road transport.

Technical parameter of chassis DFL3258A3
outside dimension (L×W×H)mm		8300×2500×3450
Total mass	Kg	42,060
Loading mass	Kg	30,000
Kerb mass	Kg	11,910
Chassis Model /Manufacturer		DFL3258A3
driving type		6×4
Cabin		Flat head, tippable, one bed(D310-S1)
Wheelbase	mm	3800+1450
Front overhang / rear overhang	mm	1500/1550
Front tread / rear tread	mm	2040, 1850/1850
Approach angle /Departure angle		30/28
Engine
model	L340 30		L290 30
Max. power/rotated speed	250(KW) /2200(rpm)		213KW/2200rpm
Type of fuel	Diesel		diesel
Company of engine	Dongfeng Cum,mins Engine
Gear box FAST RT-11509G

clutch		Φ430mm diaphragm spring clutch
Front axle		7T
Rear axle		16T×2
Tyre		12.00R0
Max Speed		90Km/h
air condition		With
Cargo body		5600×2300×1200mm

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper 0

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper 6

our Tipper Truck Producing workshop:

35Tons Tipper Truck Dongfeng 10 Wheels DFL Dumper 8

Welcome to Visit our factory in Suizhou City Hubei Province!
