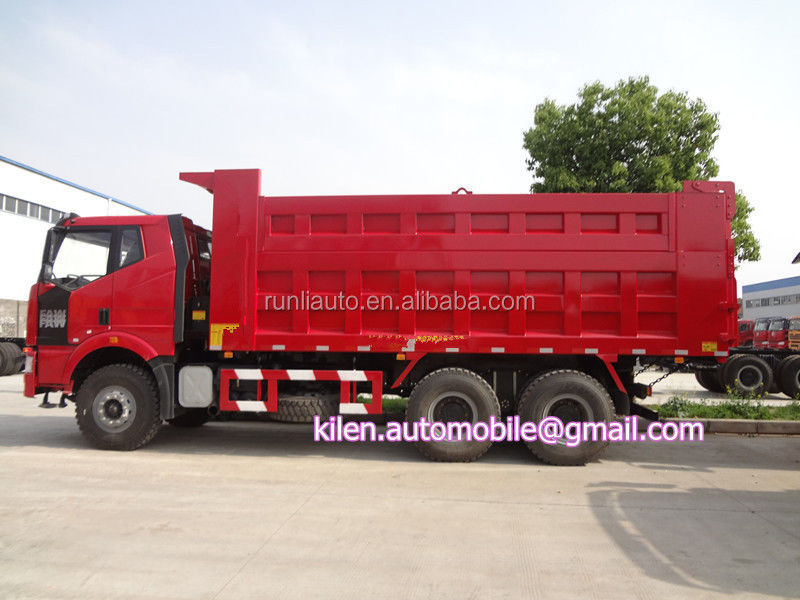

FAW J6P 350HP 6x4 dump truck 20-25 tons tipper truck
1) For T-type lifting series adopted by the series product, cylinder and hydraulic accessories made by domestic famous manufacturers are adopted, for the former top lifting series, Qingzhuan cylinders are adopted, for the former top lifting system, is uses world famous brand of Haiwo Cylindersand selects famous hydraulic parts with high-quality both at home and abroad, sub-frame and the beam of van use high- quality channel steel, and the vans are formed with dustpan and rectangular two shapes. The products have the feature of high rigidity and lifting
2) The trucks are classified as ore bucket-type compartment, rectangular compartment, U-type compartment, and adopt high-strength low-alloy structural steel plate for better impact resistance, they are suitable for loading and unloading ores and large stones.
3) With new type lifting device, loads on each component are more reasonable, and the pressures features of the hydraulic system are excellent, the cylinder rise-off accident is remedied effectively while the viscous cargo is dumping, and the lifting reliability is improved greatly
|
Truck Model
|
CA3250P66K2L3T1A1E
|
|
Dimension(Lx W xH)(unloaded)(mm)
|
7835×2496×3386
|
|
Cargo body size (LxWxH)(mm)
|
7000x2300x1400(1500), T middle lift,bottom 8mm, side 6mm
|
|
Approaching angle/Departure angle(°)
|
19/27
|
|
Overhang(front/rear) (mm)
|
1500/1560
|
|
Wheel base (mm)
|
4800+1350
|
|
Max speed(km/h)
|
75
|
|
Curb weight(kg)
|
12380
|
|
Loading Weight(kg)
|
12490
|
|
Engine
(Steyr technology, made in China)
|
Model
|
CA6DL2-35E3F ,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
|
|
Fuel type
|
Diesel
|
|
HorsePower, max(kw/rpm)
|
350HP,261/1300-1500
|
|
Emission
|
EURO 3
|
|
Fuel tanker capacity (L)
|
300
|
|
Transmission
|
Model
|
12JSD160
|
|
Brake system
|
Service brake
|
Dual circuit compressed air brake
|
|
Parking brake
|
spring energy, compressed air operating on rear wheels
|
|
Steering system
|
Model
|
ZF8098
|
|
Front axle
|
HF9 Drum, Steering with double T-cross section beam
|
|
Rear axle
|
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels
|
|
Tyre
|
12.00R20, radial tire
|
|
Electrical system
|
Battery
|
2X12V/165Ah
|
|
Alternator
|
28V-1500kw
|
|
Starter
|
7.5Kw/24V
|
|
Cab
|
FAW J6P cab, single-sleeper, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
|
