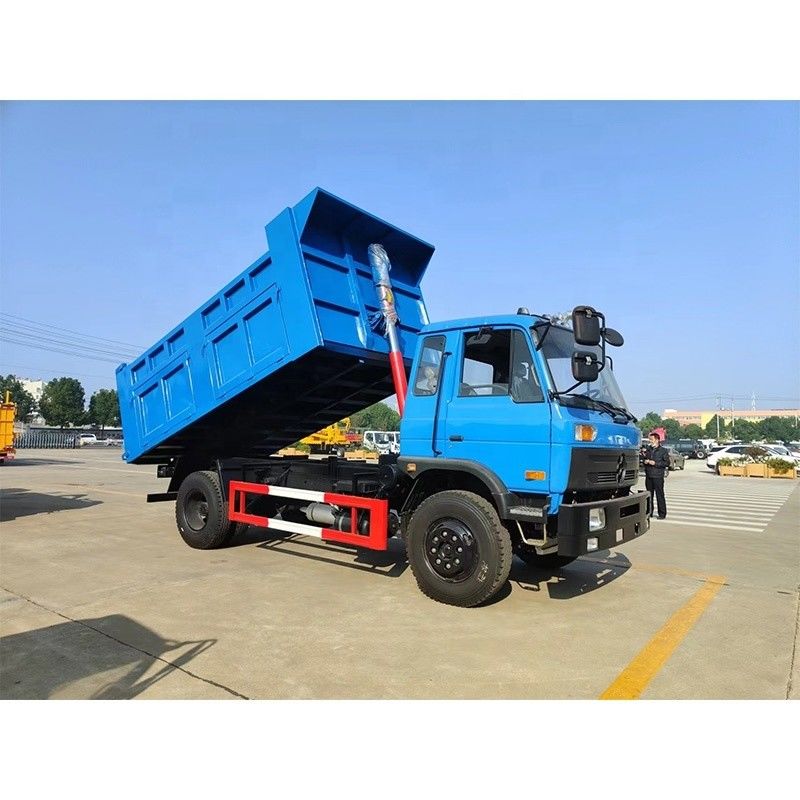

Dongfeng 4x2 Construction Tipper Truck Diesel Dumper Truck 10 Cubic Meter

Product Details

Place of Origin: Hubei, China

Brand Name: SCS

Payment & Shipping Terms

Price: CN¥93,276.03/units >=1 units

Packaging Details: Standard export package

Supply Ability: 500 Unit/Units per Month

Get Best Price
Highlight:

10 Cubic Meter Diesel Dumper Truck

,

dongfeng dump tipper truck

,

Dongfeng 4x2 Construction Tipper Truck

Condition:
New
Steering:
Left
Horsepower:
130
Emission Standard:
Euro 3
Segement:
Medium-sized Truck
Market Segement:
Highway Transportatopn
Fuel Type:
Diesel
Engine Capacity:
< 4L
Gear Box Brand:
WLY
Transmission Type:
Manual
Forward Shift Number:
5
Reverse Shift Number:
1
Maximum Torque(Nm):
500-1000Nm
Dimensions (L X W X H) (mm):
7350*2450*2840
Cargo Tank Dimension:
4500*2200*800mm
Cargo Tank Length:
4.2-5.3m
Gross Vehicle Weight:
16000
Capacity (Load):
1 - 10t
Drive Wheel:
4X2
Passengers:
3
Rear Camera:
Camera
ABS(Antilock Braking System):
None
ESC(Electronic Stability Control System):
None
Touch Screen:
None
Multimedia System:
None
Window:
Manual
Air Conditioner:
Manual
Tire Number:
6
After-sales Service Provided:
Video Technical Support, Return And Replacement, Online Support, Free Spare Parts
Color:
Optional
Tire:
9.00R20
Horse Power:
130HP
Brand:
Dongfeng, Howo, Foton, Jac
Origin:
China Original
Port:
Shanghai/Wuhan/Tianjin/Guangzhou
Condition:
New
Steering:
Left
Horsepower:
130
Emission Standard:
Euro 3
Segement:
Medium-sized Truck
Market Segement:
Highway Transportatopn
Fuel Type:
Diesel
Engine Capacity:
< 4L
Gear Box Brand:
WLY
Transmission Type:
Manual
Forward Shift Number:
5
Reverse Shift Number:
1
Maximum Torque(Nm):
500-1000Nm
Dimensions (L X W X H) (mm):
7350*2450*2840
Cargo Tank Dimension:
4500*2200*800mm
Cargo Tank Length:
4.2-5.3m
Gross Vehicle Weight:
16000
Capacity (Load):
1 - 10t
Drive Wheel:
4X2
Passengers:
3
Rear Camera:
Camera
ABS(Antilock Braking System):
None
ESC(Electronic Stability Control System):
None
Touch Screen:
None
Multimedia System:
None
Window:
Manual
Air Conditioner:
Manual
Tire Number:
6
After-sales Service Provided:
Video Technical Support, Return And Replacement, Online Support, Free Spare Parts
Color:
Optional
Tire:
9.00R20
Horse Power:
130HP
Brand:
Dongfeng, Howo, Foton, Jac
Origin:
China Original
Port:
Shanghai/Wuhan/Tianjin/Guangzhou
Dongfeng 4x2 Construction Tipper Truck Diesel Dumper Truck 10 Cubic Meter

Promotion Dongfeng 4x2 10 cubic meter dump truck capacity



Product Description



  1. 1. For Ttype lifting series adopted by the series product, cylinder and hydraulic accessories made by domestic famous manufacturers are adopted, for the former top lifting series, Qingzhuan cylinders are adopted, for the former top lifting system, is uses world famous brand of Haiwo Cylindersand selects famous hydraulic parts with high-quality both at home and abroad, sub-frame and the beam of van use high- quality channel steel, and the vans are formed with dustpan and rectangular two shapes. The products have the feature of high rigidity and lifting
  2. 2. The trucks are classified as ore bucket-type compartment, rectangular compartment, U-type compartment, and adopt high-strength low-alloy structural steel plate for better impact resistance, they are suitable for loading and unloading ores and large stones.
  3. 3. The Lifting devices, manual control and air control devices of both T-type and F-type of forward and pushing system can be operated easily and conveniently.
  4. 4. With new type lifting device, loads on each component are more reasonable, and the pressures features of the hydraulic system are excellent, the cylinder rise-off accident is remedied effectively while the viscous cargo is dumping, and the lifting reliability is improved greatly.
  5. 5. With wide rear structure, the strength is stronger. The lifting rearbase design enables higher stability in horizontal direction
  6. 6. The trucks are applicable to all kinds of bulk material transportation of railways, waterways, port facilities, road facilities and engineering construction.

Chassis

Chassis model

EQ1108KJ

Drive mode

4X2

Tire type

9.00 nylon tire

Brake system

Air brake

Steering system

Power steering,LHD

Engine

Model

YC130 33

Horsepower (kw/Hp)

96/130

Displacement(ml)

4214

Emission standard

Euro 3

Description

In-line,4 cylinders,turbo charged,water cooled,inter cooled,diesel engine

Gearbox

Description

Manual,5 forward &1 reverse gears

Cabin

Description

Classic one and half rows,standard configuration,with single sleeper,3 passengers allowable.A/C optional

(+200USD)

Main parameter

Dimension

Overall dimension

7350×2450×2840mm

Wheelbase

3950mm

Cargo box

4500*2200*800mm

Weight

Curb weight

5805Kg

Load weight

10000Kg

Leaf spring No.

8/10+7

Approaching/Departure Angle(°)

25/15

Front/Rear suspension(mm)

1205/1675

Front/Rear track(mm)

1900/1800

Max speed(km/h)

90

Front/Rear axle load (kg)

3600/8000

Box

Dimension

4500*2200*800mm

Thickness

Side 3mm, floor 4mm high quality steel

Tipper

Double top
