Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                euro 4 dump truck, euro 4 dump tipper truck


Condition:	New	Steering:	Left
Horsepower:	251 - 350hp	Emission Standard:	Euro 4
Segement:	Heavy Truck	Market Segement:	Engineering Transportation
Fuel Type:	Diesel	Engine Capacity:	> 8L
Cylinders:	6	Transmission Type:	Manual
Forward Shift Number:	12	Reverse Shift Number:	2
Maximum Torque(Nm):	1500-2000Nm	Cargo Tank Dimension:	6400x2300x1250mm
Cargo Tank Length:	6.2-8m	Gross Vehicle Weight:	≥30T
Capacity (Load):	11 - 20T	Fuel Tank Capacity:	300-400L
Drive Wheel:	8X4	Passengers:	6
Driver's Seat:	Normal	Rear Camera:	None
ABS(Antilock Braking System):	Yes	ESC(Electronic Stability Control System):	None
Touch Screen:	None	Window:	Manual
Tire Number:	12	After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support
Color:	Customer's Request

Condition:	New
Steering:	Left
Horsepower:	251 - 350hp
Emission Standard:	Euro 4
Segement:	Heavy Truck
Market Segement:	Engineering Transportation
Fuel Type:	Diesel
Engine Capacity:	> 8L
Cylinders:	6
Transmission Type:	Manual
Forward Shift Number:	12
Reverse Shift Number:	2
Maximum Torque(Nm):	1500-2000Nm
Cargo Tank Dimension:	6400x2300x1250mm
Cargo Tank Length:	6.2-8m
Gross Vehicle Weight:	≥30T
Capacity (Load):	11 - 20T
Fuel Tank Capacity:	300-400L
Drive Wheel:	8X4
Passengers:	6
Driver's Seat:	Normal
Rear Camera:	None
ABS(Antilock Braking System):	Yes
ESC(Electronic Stability Control System):	None
Touch Screen:	None
Window:	Manual
Tire Number:	12
After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support
Color:	Customer's Request

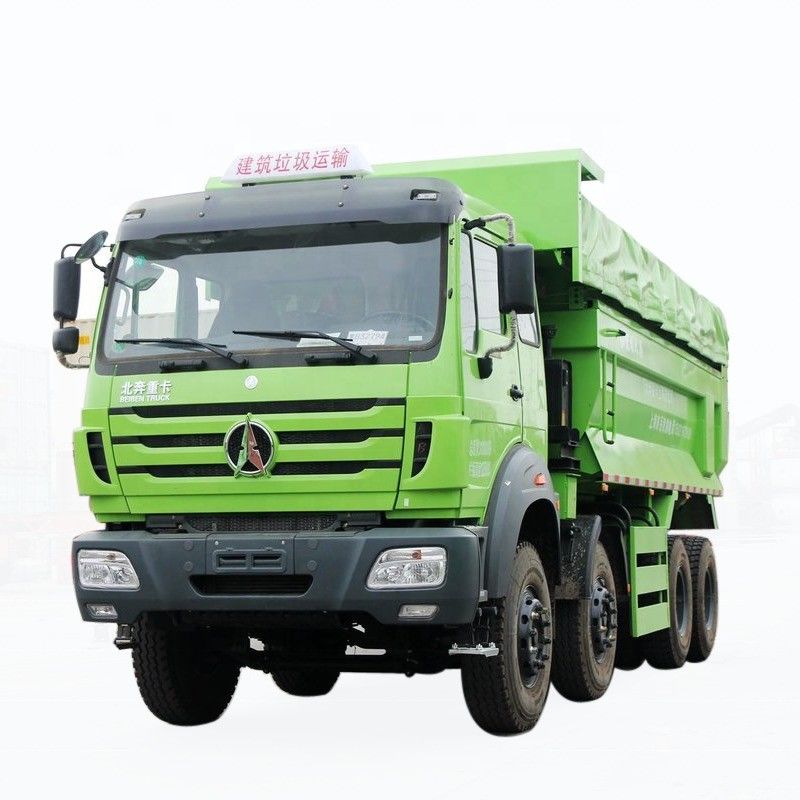

BEIBEN 8X4 Dump Truck Tipper Truck Mobile Discharge Truck

BEIBEN 8X4 Dump Truck Tipper Truck Mobile Discharge Truck 0

Announcement model:	ND33103D28J
Driving form:	8X4
Wheelbase:	1950+2800+1450mm
Body length:	9.28m
Body width:	2.5 m
Body height:	3.48 m
Front wheel base:	2045mm
Rear wheel base:	1872mm
Vehicle weight:	14.765 tons
Rated load:	16.105 tons
Total mass:	31 tons
Tonnage class:	Heavy truck
Approach Angle:	Thirty-three degrees
Departure Angle:	25 degrees
Market segments:	Urban construction debris
Engine type:	Weichai WP10.336E40
Engine brand:	Weichai
Number of cylinders:	6-cylinder
Fuel Type:	Diesel oil
Displacement:	9.726 L
Emission standard:	Euro IV
Maximum horsepower:	336 horsepower
Maximum output power:	247kW
Maximum torque:	1500N·m
Maximum torque speed:	1300-1600rpm
Rated speed:	1900rpm
Engine form:	Water-cooled, four-stroke, with exhaust brake, direct injection, supercharged intercooling
Container length:	6.4 m
Container width:	2.3 m
Container height:	1.25 m
Container form:	Back dump type
Transmission model:	Fast 12JS200TA
Transmission brand:	Fast
Forward gear:	12th speed
Number of reversals:	two
Tank capacity:	300L
Rear axle allowable load:	18000kg
Speed Ratio:	5.263
Number of spring pieces:	2012/12/13
Tire Specifications:	12.00 R20
Number of tires:	twelve
