Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                4x2 dump truck with warranty, dump truck tip lorry, loading truck dump truck


Condition:	New	Steering:	Left
Horsepower:	140	Emission Standard:	Euro 6
Segement:	Light Truck	Market Segement:	Urban Construction Muck Transportation
Fuel Type:	Diesel	Engine Capacity:	< 4L
Cylinders:	4	Transmission Type:	Manual
Forward Shift Number:	5	Reverse Shift Number:	1
Maximum Torque(Nm):	≤500Nm	Cargo Tank Dimension:	3200x2050x600mm
Cargo Tank Length:	≤4.2m	Gross Vehicle Weight:	5-10T
Capacity (Load):	1 - 10t	Fuel Tank Capacity:	≤100L
Drive Wheel:	4X2	Passengers:	5
Driver's Seat:	Normal	Rear Camera:	None
ABS(Antilock Braking System):	Yes	ESC(Electronic Stability Control System):	None
Touch Screen:	None	Window:	Automatic
Tire Number:	6	After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts
Color:	Customer's Request

Condition:	New
Steering:	Left
Horsepower:	140
Emission Standard:	Euro 6
Segement:	Light Truck
Market Segement:	Urban Construction Muck Transportation
Fuel Type:	Diesel
Engine Capacity:	< 4L
Cylinders:	4
Transmission Type:	Manual
Forward Shift Number:	5
Reverse Shift Number:	1
Maximum Torque(Nm):	≤500Nm
Cargo Tank Dimension:	3200x2050x600mm
Cargo Tank Length:	≤4.2m
Gross Vehicle Weight:	5-10T
Capacity (Load):	1 - 10t
Fuel Tank Capacity:	≤100L
Drive Wheel:	4X2
Passengers:	5
Driver's Seat:	Normal
Rear Camera:	None
ABS(Antilock Braking System):	Yes
ESC(Electronic Stability Control System):	None
Touch Screen:	None
Window:	Automatic
Tire Number:	6
After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts
Color:	Customer's Request

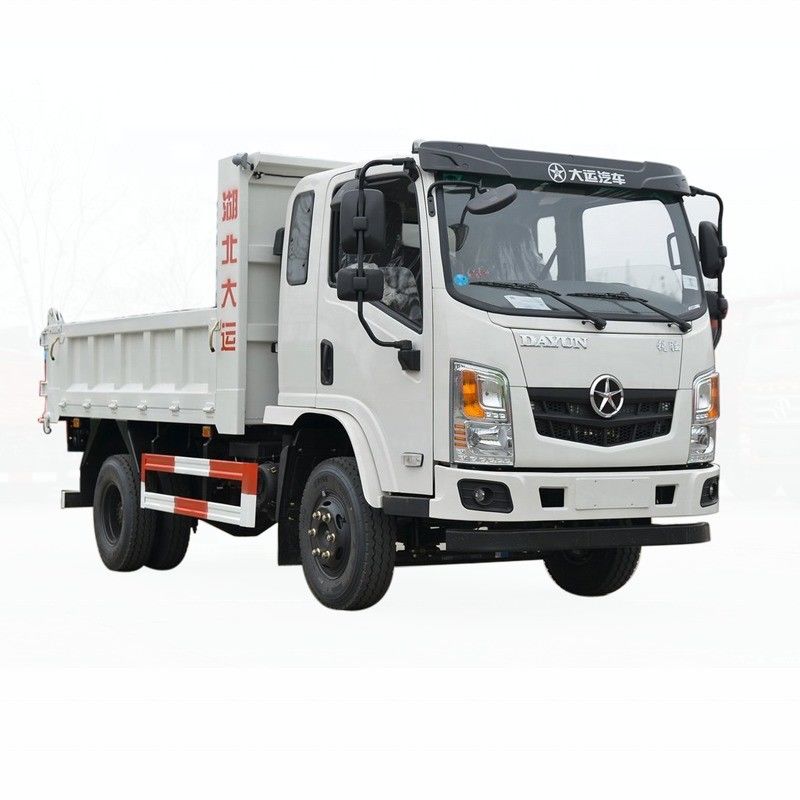

DAYUN 4X2 Dump Truck Tip Lorry Loading Truck

DAYUN 4X2 Dump Truck Tip Lorry Loading Truck 0

Announcement model:	DYQ3098D6AD
Driving form:	4X2
Wheelbase:	2860mm
Body length:	5.35m
Body width:	2.08 m
Body height:	2.2 m
Front wheel base:	1505mm
Rear wheel base:	1505mm
Vehicle weight:	4.38 tons
Rated load:	4.59 tons
Total mass:	9.1 tons
Tonnage class:	Light truck
Approach Angle:	17 degrees
Departure Angle:	Twenty-one degree
Engine type:	Yuchai YCY24140-60
Engine brand:	Yuchai
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Displacement:	2.36 L
Emission standard:	euro6
Maximum horsepower:	140 horsepower
Maximum output power:	103kW
Maximum torque:	400N·m
Maximum torque speed:	1400-2000rpm
Rated speed:	2950rpm
Engine form:	High voltage common rail +EGR+DOC+DPF+SCR+ASC
Container length:	3.2 m
Container width:	2.05 m
Container height:	0.6 m
Container form:	self-discharging
Cab lift:	power-driven
Transmission model:	Wanliyan 10H46
Transmission brand:	Myriyan
Forward gear:	Fifth gear
Number of reversals:	one
Fuel tank material:	Aluminium alloy
Tank capacity:	70L
Frame size:	760 x 232 x (7+4) mm
Front axle description:	1069 Shortened bridge /2.3t
Front axle allowable load:	3300kg
Rear axle description:	1089 Shortened bridge /7t
Rear axle allowable load:	5800kg
Speed Ratio:	5.833
Number of spring pieces:	9/10 + 8
Tire Specifications:	8.25R16LT 16PR
Number of tires:	six
ABS Anti-lock:	Y
