Condition:	New	Steering:	Left
Horsepower:	120	Emission Standard:	Euro 6
Segement:	Light Truck	Market Segement:	Urban Construction Muck Transportation
Fuel Type:	Diesel	Engine Capacity:	4 - 6L
Cylinders:	4	Transmission Type:	Manual
Forward Shift Number:	8	Reverse Shift Number:	2
Maximum Torque(Nm):	500-1000Nm	Cargo Tank Dimension:	5300x2300x800mm
Cargo Tank Length:	4.2-5.3m	Gross Vehicle Weight:	5-10T
Capacity (Load):	1 - 10t	Fuel Tank Capacity:	100-200L
Drive Wheel:	4X2	Passengers:	3
Driver's Seat:	Air Suspension	Rear Camera:	None
Cruise Control:	None	ABS(Antilock Braking System):	Yes
ESC(Electronic Stability Control System):	None	Touch Screen:	None
Window:	Automatic	Tire Number:	6
After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts	Color:	Customer's Request

Condition:	New
Steering:	Left
Horsepower:	120
Emission Standard:	Euro 6
Segement:	Light Truck
Market Segement:	Urban Construction Muck Transportation
Fuel Type:	Diesel
Engine Capacity:	4 - 6L
Cylinders:	4
Transmission Type:	Manual
Forward Shift Number:	8
Reverse Shift Number:	2
Maximum Torque(Nm):	500-1000Nm
Cargo Tank Dimension:	5300x2300x800mm
Cargo Tank Length:	4.2-5.3m
Gross Vehicle Weight:	5-10T
Capacity (Load):	1 - 10t
Fuel Tank Capacity:	100-200L
Drive Wheel:	4X2
Passengers:	3
Driver's Seat:	Air Suspension
Rear Camera:	None
Cruise Control:	None
ABS(Antilock Braking System):	Yes
ESC(Electronic Stability Control System):	None
Touch Screen:	None
Window:	Automatic
Tire Number:	6
After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts
Color:	Customer's Request

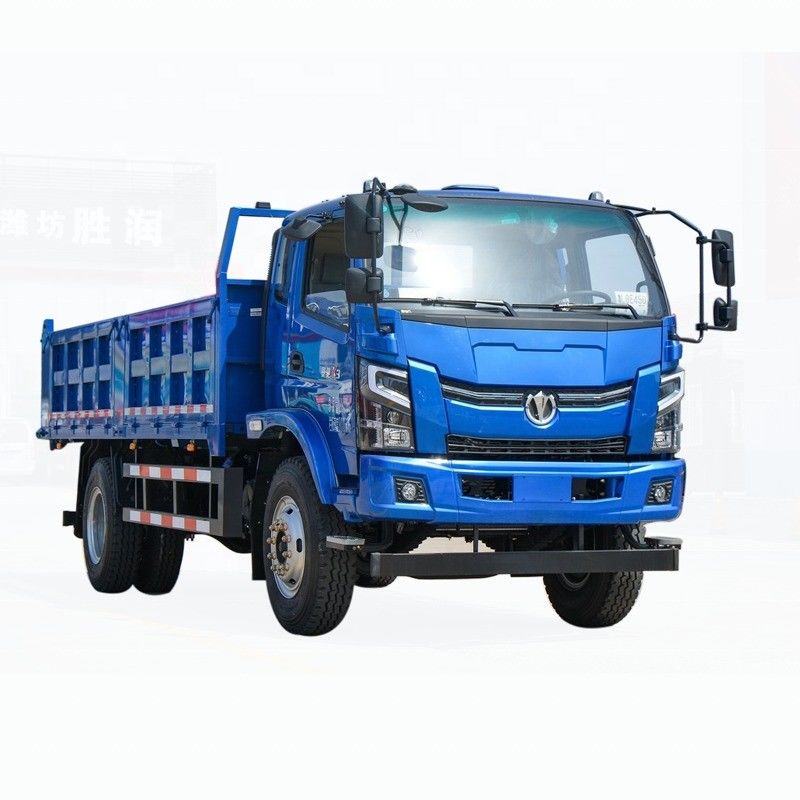

WAW 4X2 Dump Truck

WAW 4X2 Dump Truck 0

Announcement model:	FD3186P63K6-1
Driving form:	4X2
Wheelbase:	4200mm
Body length:	7.56 m
Body width:	2.4 m
Body height:	2.6 m
Front wheel base:	1830mm
Rear wheel base:	1810mm
Vehicle weight:	6.6 tons
Rated load:	11.205 tons
Total mass:	18 tons
Tonnage class:	Light truck
Approach Angle:	22 degrees
Departure Angle:	16 degrees
Engine type:	Power in the cloud D40TCIF1
Engine brand:	Intra-cloud dynamics
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Displacement:	4L
Emission standard:	euro6
Maximum horsepower:	184 horsepower
Maximum output power:	135kW
Maximum torque:	660N·m
Maximum torque speed:	1200-2000rpm
Rated speed:	2300rpm
Engine form:	Electronic common rail system HEGR+DOC+DPF+SCR+ASC
Container length:	5.3 m
Container width:	2.3 m
Container height:	0.8 m
Container form:	self-discharging
Hydraulic cylinder brand model:	100, 110
Material of cargo box:	Q235A, CR780/980MS, etc
Container thickness:	Side 1 base 1, side 2 base 3, side 3 base 5 and so on
Cab:	Single row
Main seat form:	Airbag cushioned seats
Transmission model:	Fast 8JS85TE-C
Transmission brand:	Fast
Forward gear:	Eighth speed
Number of reversals:	two
Tank capacity:	150L
Front axle allowable load:	6500kg
Rear axle description:	9T
Rear axle allowable load:	11500kg
Speed Ratio:	5.143
Number of spring pieces:	10/10 + 9
Tire Specifications:	10.00R20 18PR
Number of tires:	six
ABS Anti-lock:	yes
Integrated fender:	yes
Side skirt plate:	yes
Independent warm air:	yes
Power Windows:	yes
Power interface:	24V
Remote control key:	yes
Electronic central lock:	yes
External audio source interface (AUX/USB/iPod, etc.) :	yes
Radio:	yes
Parking brake:	Cutoff brake
Engine braking:	yes
Front wheel brake:	Drum brake
Rear wheel brake:	Drum brake
Vehicle networking system:	yes
