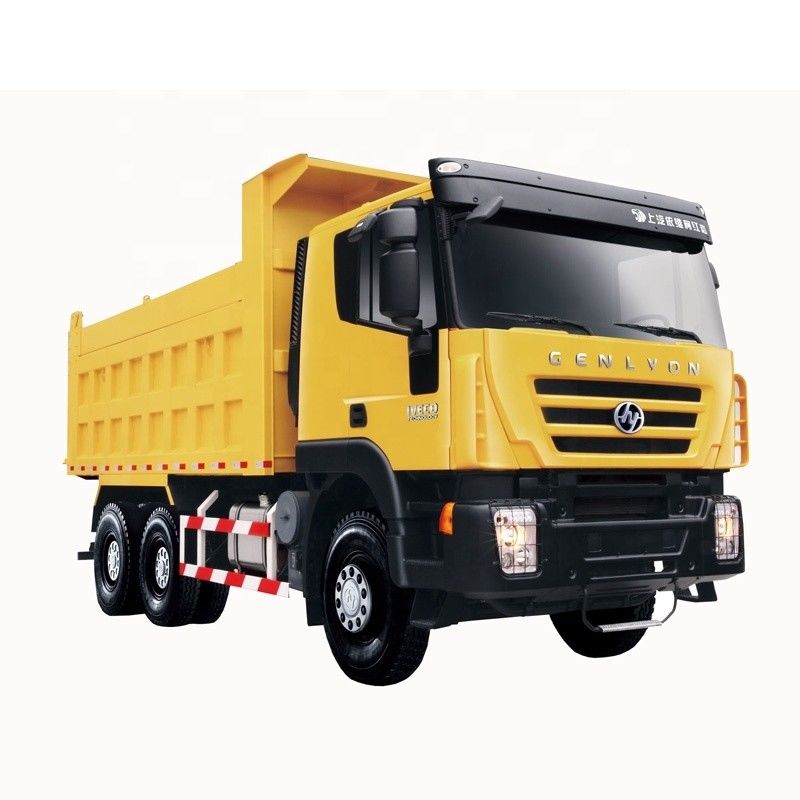

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper

Product Details

Place of Origin: Hubei, China

Brand Name: sinotruk

Payment & Shipping Terms

Price: CN¥144,614.00/units 1-4 units

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                euro 3 dump truck, euro 3 dump tipper truck


Condition:	New	Steering:	Left
Horsepower:	351 - 450hp	Emission Standard:	Euro 3
Segement:	Heavy Truck	Market Segement:	Engineering Transportation
Engine Brand:	WEICHAI	Fuel Type:	Diesel
Engine Capacity:	> 8L	Cylinders:	6
Gear Box Brand:	FAST	Transmission Type:	Manual
Forward Shift Number:	10	Reverse Shift Number:	2
Maximum Torque(Nm):	1500-2000Nm	Dimensions (L X W X H) (mm):	8500X2500X3550
Cargo Tank Dimension:	5800x2300x1500	Cargo Tank Length:	5.3-6.2M
Gross Vehicle Weight:	20-25T	Capacity (Load):	21 - 30T
Fuel Tank Capacity:	300-400L	Drive Wheel:	6x4
Passengers:	3	Driver's Seat:	Normal
Rear Camera:	None	Cruise Control:	None
ABS(Antilock Braking System):	None	ESC(Electronic Stability Control System):	None
Touch Screen:	None	Multimedia System:	None
Window:	Automatic	Air Conditioner:	Automatic
Tire Number:	11	After-sales Service Provided:	Online Support, Video Technical Support

Condition:	New
Steering:	Left
Horsepower:	351 - 450hp
Emission Standard:	Euro 3
Segement:	Heavy Truck
Market Segement:	Engineering Transportation
Engine Brand:	WEICHAI
Fuel Type:	Diesel
Engine Capacity:	> 8L
Cylinders:	6
Gear Box Brand:	FAST
Transmission Type:	Manual
Forward Shift Number:	10
Reverse Shift Number:	2
Maximum Torque(Nm):	1500-2000Nm
Dimensions (L X W X H) (mm):	8500X2500X3550
Cargo Tank Dimension:	5800x2300x1500
Cargo Tank Length:	5.3-6.2M
Gross Vehicle Weight:	20-25T
Capacity (Load):	21 - 30T
Fuel Tank Capacity:	300-400L
Drive Wheel:	6x4
Passengers:	3
Driver's Seat:	Normal
Rear Camera:	None
Cruise Control:	None
ABS(Antilock Braking System):	None
ESC(Electronic Stability Control System):	None
Touch Screen:	None
Multimedia System:	None
Window:	Automatic
Air Conditioner:	Automatic
Tire Number:	11
After-sales Service Provided:	Online Support, Video Technical Support

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper

hongyan Genlyon 6x4 30 tons dump truck 30 tons tipper 30 tons dumper

Products Technical Specification
Brand-Series		HONGYAN
Chassis Model		CQ3254HTG384
Emission Standard		Euro3
Fuel type		Diesel
Cabin		Genlyon short cab with A/C (optional:Genlyon Flat Top Cab)
Country of origine		China
Whole vehicle main dimensions (mm)	Overall dimensions (L×W×H)	827525003550
	Wheel base	3800+1400
	Front overhang	1435
	Rear overhang	1675
	Front /rear tread(mm)	2006/1850
Weight data (kg)	Gross weight (kg)	25000
	Loading weight (kg)	12780
	Curb weight(kg)	12090
Cargo body Description	Crago body dimensions (mm)	540023001300
	Crago body thickness	side 6mm thickness;bottom 8mm thickness
	Lifting System	Middle hoisting
Whole vehicle main performance	Max. speed (km/h)	80
	Max. grade ability (%)	35
	Approach/Departure(°)	23/15
	Leaf Spring NO.	9/12
Engine	Model	WP10.340E32
	Maximum power	250kw /340hp
		4 stroke direct injection diesel engine
		6 cylinder in-line with water-cooling, turbo-charging and inter-cooling
	Displacement (L)	9.726
	Engine Manufacturer	weichai
Clutch	Model	Φ430 Diaphragm Spring
Transmission	Brand and Model	FAST,12JSD160T
Transmission	Number of gears	12 forward gears & 2 reverse
Axle	Front Load capacity (kg)	7500
Axle	Rear Load capacity (kg)	18000
Steering	Model	ZF Hydraulic Power Steering
Steering Wheel	left/right hand drive	LHD
Frame	Model	865/317 8+8
Electric device	Rated voltage	24V
oil tank capacity		350L
Tyres & Quantity		12.00R20 & 10+1

Detailed Images

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper 0

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper 4

type list of product

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper 8

Chassis brand

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper 10

Company Information

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper 11

Packaging & Shipping

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper 12

customer

Hongyan Genlyon 6x4 30 Tons Dump Truck 30 Tons Tipper 30 Tons Dumper 13

FAQ

Hubei Runli Special Automobile Co., Ltd is the big domestic enterprise of China, having both the R&D capabilities for special vehicle manufacture and the permission with notice of State Development and Reform Commission.

The main products are

1. Water truck ,Water Tank
2. Fuel tanker truck, Oil Truck,
3. Fire engine truck
4.Truck mounted crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
7. Bulk cement truck
8. Concrete mixer truck
9. Garbage truck,swing arm garbage truck,Self-loading garbage truck,garbage compactor truck,sealed garbage truck
10. Fecal suction truck,sewage suction truck
11. High altitude working truck
12. wrecker truck
13. LED advertisement truck
14. Chemical liquid truck
15. Van truck,insulated truck,refrigeration truck
16. Road sweeper truck,wash and sweep truck
17. High pressure cleaning truck,cleaning and sewage suction truck
18. flatbed transport truck
19. asphalt distributor truck, ynchronous chip sealer truck
20. Dust suppression truck, mist cannon truck

21. Cargo truck, lorry truck
22. Car carrier truck
23. Ambulance,hearse,
24. Tractor Truck
25. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer

Our truck brand :
Dongfeng, sinotruk HOWO, FAW, FOTON, SHACMAN, beiben, CAMC, I S U Z U,GAC H I NO, JAC, JMC, X C M G, IVE CO hongyan , dayun, yuejin, CDW, changan, and so on.

Welcome to visit our company in China !

Remarks:

The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.

Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:

Contact name: Ms. Anna Yin

Mobile phone:0086-15072975635
