Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                5000 liters LPG Refueling Truck, Euro III Bobtail LPG Truck, 120HP Mobile LPG Truck


Chassis:	EQ1060	Warranty:	1 Year
Forward Shift Number:	5	Fuelcapacity:	150 Liters
Core Components:	Engine	Horsepower:	90HP 120HP
Emissionstandard:	Euro 3 Euro 6	Model:	Standard
Segement:	Light Truck	Drivetype:	4x2
Steering Wheel:	Customer's Requirement	Wheelbase:	3300mm
Storage:	Water

Chassis:	EQ1060
Warranty:	1 Year
Forward Shift Number:	5
Fuelcapacity:	150 Liters
Core Components:	Engine
Horsepower:	90HP 120HP
Emissionstandard:	Euro 3 Euro 6
Model:	Standard
Segement:	Light Truck
Drivetype:	4x2
Steering Wheel:	Customer's Requirement
Wheelbase:	3300mm
Storage:	Water

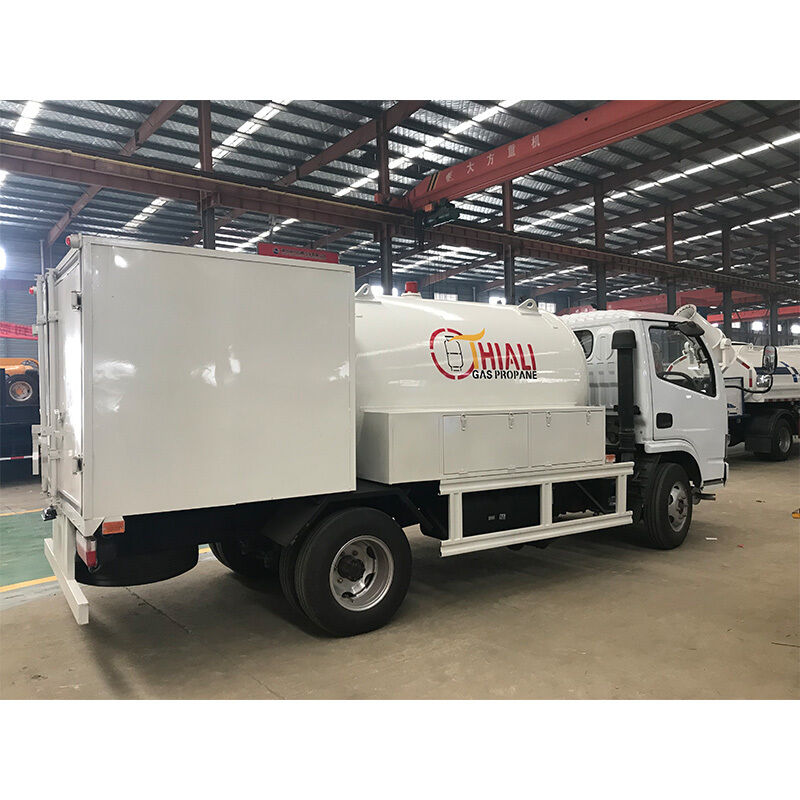

5000 liters Mobile LPG Refueling Truck with Euro III Emission and 120HP Engine

5000 Liters Mobile LPG Refueling Truck (Bobtail LPG Truck)

Chassis Specifications

Chassis Manufacturer	DFAC Chassis with air condition
Chassis Model	EQ1060
Cab Type	Flatting cab (White)
Drive Configuration	Left hand drive
Brake System	Air brake
Transmission	5 speed
Front Axle Load	1800 kgs
Rear Axle Load	3500 kgs
Vehicle Frame	Side beam frame
Overall Dimension	5940×2000×2700mm
Rated Payload	3000Kg
Kerb Weight	3580Kg

Engine Specifications

Model/Rated Power

YC4FA120-33 / 88KW / 120HP

Emission Standard

Euro III

Manufacturer

Yuchai engine co., ltd

Maximum Torque

345N·m

Max Speed

90Km/h

Additional Vehicle Specifications

Type & Size of Tyre	7.00R16
Power Take-off	Yes
Front/Rear Overhang	1055/1577 mm
Departure Angle	27/15
Suspension	Front shock absorber
Leaf Spring Configuration	(Number of front plate springs)-8, (Number of front plate springs)9+5
Number of Axles	2
Number of Tires	6+1
Spare Tire Rack	Yes
Track	1525/1498 mm
Driving Type	4×2
Wheel Base	3308mm
Brakes	Drum

LPG Tank Specifications

Tank Material	Q345R (Standard GB713-2008)
Tank Volume	5000 liters
Designed Thickness - End Cover	12 MM
Designed Thickness - Tank Body	10MM
Designed Pressure	1.77MPa
Testing Water Pressure	2.66MPa
Air Tight Test Pressure	1.77MPa
Heat Treatment	620℃
Rust Thickness	1mm
Use Years	20 years

LPG System Components

LPG Dispenser

Function	Mobile refueling to inflate LPG trucks or storage tanks
Flow Rate	15 cbm/h
Max Working Pressure	2.5MPa

LPG Pump

Function	Unloading gas
Flow Rate	15 cbm per hour
Working Pressure	2.5MPa

Additional Components

Liquid Level Meter	Uqz2.5-1500 (Floating ball type)
Pressure Meter	DN50 A412F-25-22
Safe Valve	Build in type
Thermometer	DN50
Liquid Phase	Q41F-25P-8B/9B
Gas Phase	DN25
Sewage Draining Exit	Q41F-25P-8B/9B
