Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                double row cargo van truck, double row van cargo truck, logistics transportation cargo van truck


Condition:	New	Steering:	Left
Emission Standard:	Euro 6	Segement:	Light Truck
Market Segement:	Logistics Transportation	Fuel Type:	Diesel
Engine Capacity:	< 4L	Cylinders:	4
Horsepower:	< 150hp	Transmission Type:	Manual
Forward Shift Number:	6	Reverse Shift Number:	1
Maximum Torque(Nm):	≤500Nm	Cargo Tank Dimension:	3.852.30.4
Cargo Tank Length:	≤4.2m	Cargo Tank Type:	Column Plate
Gross Vehicle Weight:	<=5000 Kg	Capacity (Load):	1 - 10t
Fuel Tank Capacity:	≤100L	Drive Wheel:	4X2
Passengers:	5	Driver's Seat:	Normal
Seat Rows:	Double Row	Rear Camera:	None
ABS(Antilock Braking System):	Yes	ESC(Electronic Stability Control System):	None
Touch Screen:	None	Window:	Manual
Tire Number:	6	After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support
Color:	Customer's Request

Condition:	New
Steering:	Left
Emission Standard:	Euro 6
Segement:	Light Truck
Market Segement:	Logistics Transportation
Fuel Type:	Diesel
Engine Capacity:	< 4L
Cylinders:	4
Horsepower:	< 150hp
Transmission Type:	Manual
Forward Shift Number:	6
Reverse Shift Number:	1
Maximum Torque(Nm):	≤500Nm
Cargo Tank Dimension:	3.852.30.4
Cargo Tank Length:	≤4.2m
Cargo Tank Type:	Column Plate
Gross Vehicle Weight:	<=5000 Kg
Capacity (Load):	1 - 10t
Fuel Tank Capacity:	≤100L
Drive Wheel:	4X2
Passengers:	5
Driver's Seat:	Normal
Seat Rows:	Double Row
Rear Camera:	None
ABS(Antilock Braking System):	Yes
ESC(Electronic Stability Control System):	None
Touch Screen:	None
Window:	Manual
Tire Number:	6
After-sales Service Provided:	Onsite Installation, Video Technical Support, Field Installation, Commissioning And Training, Online Support
Color:	Customer's Request

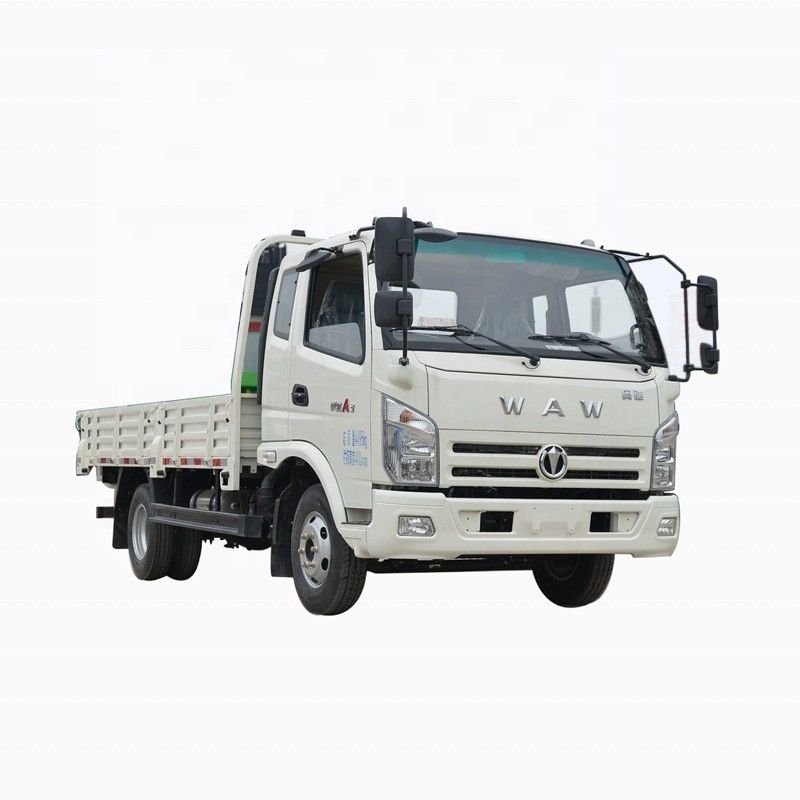

WAW Double Row Column Plate Cargo Truck

WAW Double Row Column Plate Cargo Truck 0

Basic information
Announcement model:	FD1042W63K5-1
Type:	truck
Driving form:	4X2
Wheelbase:	3360mm
Case length level:	3.8 m
Engine:	In-cloud power D25TCIE1
Gearbox:	Wan Li Yang WLY640
Rear axle speed ratio:	4.875
Body length:	5.995 meters
Body width:	2.5 m
Body height:	2.38 meters
Front wheel base:	1700mm
Rear wheel base:	1590mm
Vehicle weight:	2.56 tons
Rated load:	1.74 tons
Total mass:	4.495 tons
Maximum speed:	95KM/h
Place of Origin:	Hubei (Province)
Tonnage class:	Light truck
Approach Angle:	22 degrees
Departure Angle:	17 degrees
Market segments:	Transportation of building materials, agricultural and sideline products
Note:	Steering wheel material: magnesium aluminum alloy.
Front/rear overhang:	1.12/1.515 m
Engine parameter
Engine type:	In-cloud power D25TCIE1
Engine brand:	Intra-cloud dynamics
Engine commonly known as:	Cloud Nedway D25
Number of cylinders:	4-cylinder
Fuel Type:	Diesel oil
Cylinder arrangement:	orthostitial
Displacement:	2.499 L
Emission standard:	Kokugo
Maximum output power:	105kw
Maximum horsepower:	143 horsepower
Maximum torque:	360N·m
Maximum torque speed:	1600-2800RPM
Rated speed:	3600RPM
Engine form:	4 cylinder in-line, 16 valve, double overhead camshaft, supercharged intercooling, high pressure common rail fuel injection
Container parameter
Container form:	panel
Container length:	3.85 m
Container width:	2.3 m
Container height:	0.4 m
Cab parameter
Cab:	A3 row half
Number of permitted passengers:	Three people
Number of seats:	Row half
Transmission parameter
Transmission model:	Wan Li Yang WLY640
Shift mode:	Manual operation
Forward gear:	Sixth gear
Number of reversals:	one
Chassis parameter
Front axle allowable load:	1850KG
Rear axle description:	1043
Rear axle allowable load:	2645KG
Speed Ratio:	4.875
Number of spring pieces:	7/7 + 6
tyre
Tire Specifications:	7.50R16LT 6PR
Number of tires:	six
Brake braking
Vehicle brake type:	Air brake
Parking brake:	Cutoff brake
Engine braking:	Standard configuration
Front wheel brake:	Drum brake
Rear wheel brake:	Drum brake
