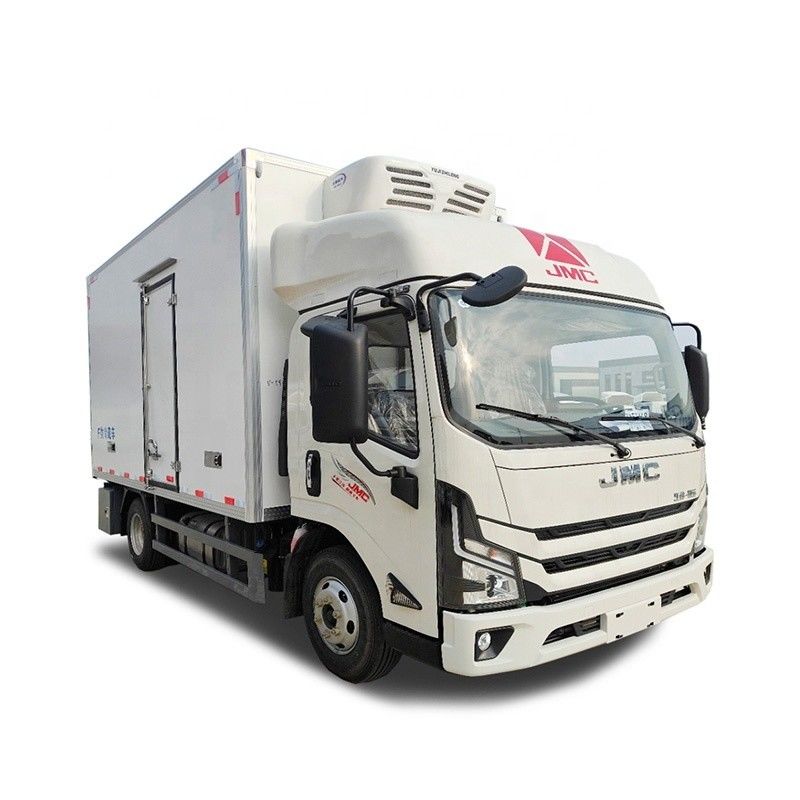

JMC 4x2 New Carrying Plus N720 T822 Refrigerator Truck Freezer

Product Details

Place of Origin: Hubei, China, China

Brand Name: JMC

Payment & Shipping Terms

Price: CN¥79,393.09/sets 1-1 sets

Get Best Price
Highlight:

air brake stake truck

,

single row stake truck

,

air brake refrigerator truck

Transmission Type:
Manual
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 2
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
5990*2080*2435
Box Dimensions (L X W X H) (mm):
4020*2100*2100
Temperature Range:
-10~-15
Gross Vehicle Weight:
5-10T
After-sales Service Provided:
Onsite Installation, Video Technical Support, Return And Replacement
Maximum Torque(Nm):
500-1000Nm
Capacity (Load):
11 - 20T
Engine Capacity:
4 - 6L
Tire:
7.00R16
Certificate:
CCC ISO
Cab:
Single Row
Warranty:
12 Months
Brake System:
Air Brake
Color:
Customer's Request
Transmission:
Manual Operation
Wheelbase:
3360
Transmission Type:
Manual
Condition:
New
Horsepower:
< 150hp
Emission Standard:
Euro 2
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
5990*2080*2435
Box Dimensions (L X W X H) (mm):
4020*2100*2100
Temperature Range:
-10~-15
Gross Vehicle Weight:
5-10T
After-sales Service Provided:
Onsite Installation, Video Technical Support, Return And Replacement
Maximum Torque(Nm):
500-1000Nm
Capacity (Load):
11 - 20T
Engine Capacity:
4 - 6L
Tire:
7.00R16
Certificate:
CCC ISO
Cab:
Single Row
Warranty:
12 Months
Brake System:
Air Brake
Color:
Customer's Request
Transmission:
Manual Operation
Wheelbase:
3360
JMC 4x2 New Carrying Plus N720 T822 Refrigerator Truck Freezer
Product Description





Model

Diesel, Singe Cabin

Chassis model

JX1054TG2 ,with A/C, tilt cabin

Dimension and mass

Outside Size

Length × Width × Height (mm)

5990mm*2080mm*2435mm



Rear body size

Length × Width × Height (mm)

4020*2100*2100mm



Temperature(℃)

-10~-15



Back door / Van material

GRP outside, Color plate inside



Wheelbase(mm)

3360



Gross Vehicle Weight (kg)

Euro I: 5495



Payload (kg)

Euro I:3075

Power System

Engine Model

Euro I:JX493ZQ4A





Displacement(cc)

2771



Compress Ratio

Euro I:18.2:1



Engine type

4-cylinder inline,



Maximum power output(Kw/rpm)

Euro I: 66/3600



Maximum torque(N.m/rpm)

Euro I:172/2000



Emission standard

Euro I



Transmission

5MT



Gearbox model

Euro I:MSB-5M

Tyre

Tubeless tyre

7.00R16LT 10PR



Number

6 pcs



Other



Seat Capacity

2



Fuel Tank (L)

100



Fuel Consumption (L/100km)

8
