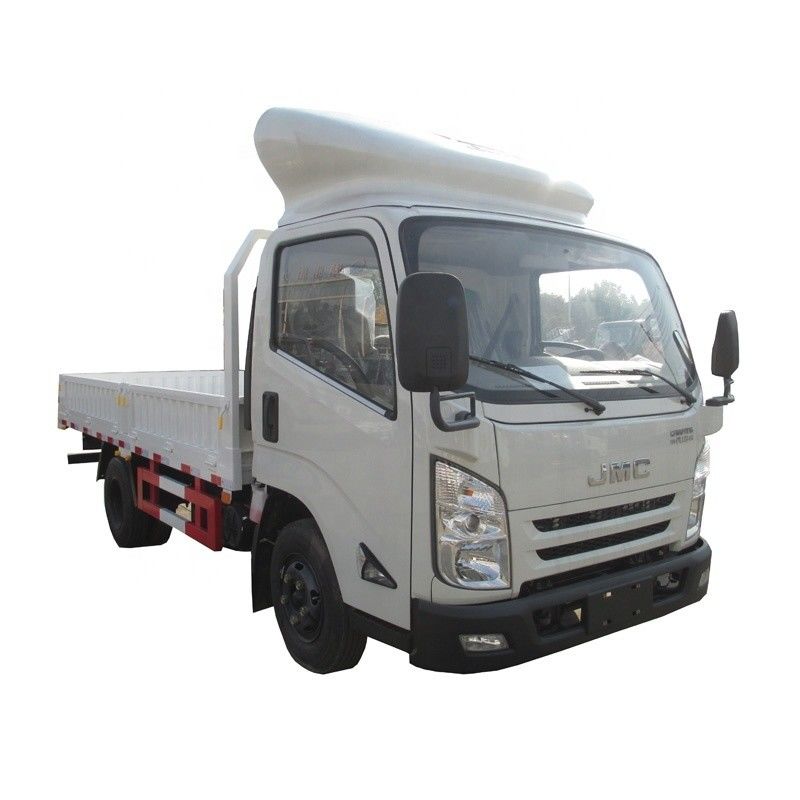

JMC 3Ton Cargo Truck JMC Truck JMC Light Truck
| Basic Information |
| Truck Dimension | 5490*1940*2350 | Box Dimension | 3850*1850*380 |
| Drive Type | 4X2 | Wheelbase(mm) | 2850 |
| Box length Level (M | 3.8 | Engine | JX493 |
| Transmission | 5-speed gearbox | Truck length(mm) | 5490 |
| Truck width (mm) | 1940 | Truck height(mm) | 2350 |
| Front tread (on wheel )(mm) | 1460 | Rear tread (on wheel )(mm) | 1475 |
| Curb weight (kg) | 2355 | Rated loading weight(kg) | 2005 |
| Gross weight | 4490 | Max. Speed(km/h) | 110 |
| Origin | China | Tonnage class | Light duty |
| Approach angle (º) | 17 | Departure angle (º) | 16 |
| Front/rear suspension (mm) | 1115/1525 | | |
| Engine Parameters |
| Engine model | JX493 | Cylinder number | 4 |
| Fuel type | Diesel | Cylinder arrangement | inline |
| Displacement (L) | 2.771 | Emission standard | Euro 2 |
| Max. output power(kw) | 68 | Max.Horsepower(hp) | 92 |
| Max. Torque(N.m) | 220 | Max. torque speed(RPM) | 2200 |
| Rated speed(RPM) | 1800 | Engine type | / |
| Cargo box parameters |
| Cargo box form | Panel type | Length (mm) | 3850 |
| Width (mm) | 1850 | Height (mm) | 380 |
| Cab parameters |
| Occupancy | 2person | Seat rows | Single |
| Cabin width | 1890mm | Air conditioner | Yes |
| Transmission parameters |
| Transmission Model | 5-speed gearbox(5MT) | Shift mode | Manual |
| forward gear | 5 | reverse gear | 1 |
| Chassis parameters |
| Allowable front axle load(kg) | 1670 | Allowable rear axle load(kg) | 2820 |
| Number of spring plates | 3/3+3 | Fuel Tank(L) | 66 |
| Tires |
| Tire Specification | 7.0R16 14PR | Number of tires | 4 |
Hubei Runli Special Automobile Co., Ltd is the big domestic enterprise of China, having both the R&D capabilities for special vehicle manufacture and the permission with notice of State Development and Reform Commission.
The main products are
1. Water truck ,Water Tank
2. Fuel tanker truck, Oil Truck,
3. Fire engine truck
4.Truck mounted crane
5.Dump truck,tipper,heavy duty truck
6.LPG Tank Truck, LPG Truck, LPG Tanker, LPG Semi-trailer, LPG Storage Tanker
7. Bulk cement truck
8. Concrete mixer truck
9. Garbage truck,swing arm garbage truck,Self-loading garbage truck,garbage compactor truck,sealed garbage truck
10. Fecal suction truck,sewage suction truck
11. High altitude working truck
12. wrecker truck
13. LED advertisement truck
14. Chemical liquid truck
15. Van truck,insulated truck,refrigeration truck
16. Road sweeper truck,wash and sweep truck
17. High pressure cleaning truck,cleaning and sewage suction truck
18. flatbed transport truck
19. asphalt distributor truck, ynchronous chip sealer truck
20. Dust suppression truck, mist cannon truck
21. Cargo truck, lorry truck
22. Car carrier truck
23. Ambulance,hearse,
24. Tractor Truck
25. Semi Trailer, Low plate semi-trailer,oil semi-trailer,van semi-trailer,bulk cement transportation semi-trailer,container semi-trailer,chemical liquid semitrailer
Our truck brand :
Dongfeng, sinotruk HOWO, FAW, FOTON, SHACMAN, beiben, CAMC, I S U Z U,GAC H I NO, JAC, JMC, X C M G, IVE CO hongyan , dayun, yuejin, CDW, changan, and so on.
Welcome to visit our company in China !
Remarks:
The above information is just for your reference. We can manufacture the trucks as per your request and we can fulfill all your demands.
Should you have any other questions or need any other information, pls feel free to contact me. It would be my great pleasure to be on your service. Pls check my contact information as following:
