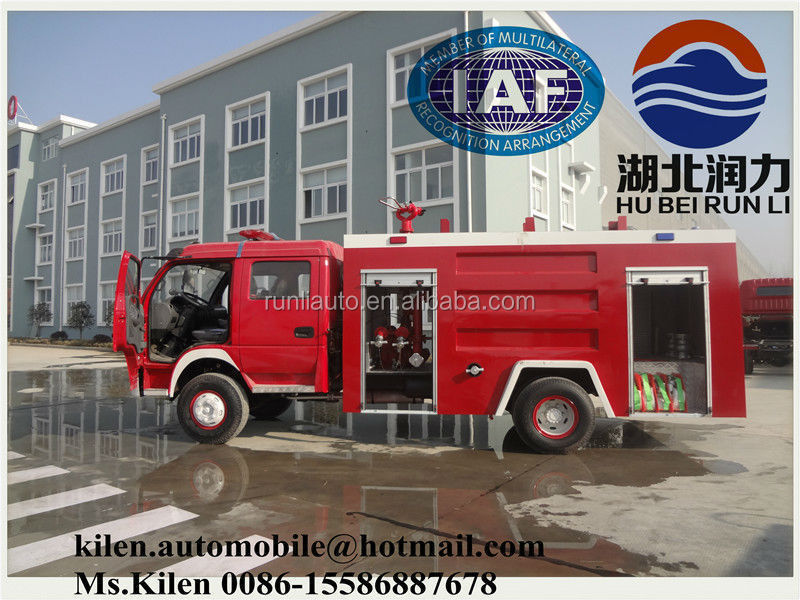

Dongfeng EQ1090 Fire fighting truck with water tank
Type of fire pump : Centrifugal pump
Minimum fire pressure : 1.0MPa
Minimum fire pump capacity : 30L/s
Fire fighting pump suction depth > 7m
Fire fighting pump suction time < 35s
Delivery outlet (B/S) type : 65mm (21/2 inch)
Fire fighting nozzle range > 55m
Rotation angle of fire fighting: 360
Turret nozzle
Pipe line (inlet) : 4”one on both side 2
Pipe line (outlet) : 2½”two on both side 2
Vehicle Main Parameters:
|
Main technical parameter
|
|
Truck origin
|
Hubei Runli special automobile Co.,Ltd.
|
|
Truck name
|
fire fighting truck with water tank
|
Product No.
|
|
|
Max. Total mass(kg)
|
6495
|
Tank capacity(M3)
|
4.5
|
|
Rated Loading mass(kg)
|
3000
|
External dimensions (L×W×H)(mm)
|
5950×1950×2150
|
|
Kerb mass(kg)
|
3300
|
Cargo dimensions
|
|
| |
(L×W×H)(mm)
|
|
Cab seats
|
3
|
Loading mass Utilization factor
|
|
|
Approach/departure angle
|
14/13
|
F/R overhang
|
1032/1618
|
|
Number of axles
|
2
|
Wheelbase(mm)
|
3300
|
|
Axle loading(kg)
|
2845/3650
|
Max speed(km/h)
|
80
|
|
chassis technical parameter
|
|
Chassis model
|
EQ1060
|
Chassis name
|
|
brand
|
Dongfeng
|
|
|
Fuel of type
|
Diesel
|
|
|
Emission standards
|
GB3847-2005,GB17691-2005
|
|
Engine model
|
manufacture
|
Displacement(ml)
|
|
SD4BW70-3R
|
Jiangsu Sida Machine group
|
2545ml/70kw
|
| |
|
|
|
