Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                6x4 bulk feed truck, 6x4 livestock feed truck, foton bulk feed truck


Condition:	New	Transmission Type:	Manual
Emission Standard:	Euro 2	Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	9000x2500x3800	Gross Vehicle Weight:	18000
After-sales Service Provided:	Video Technical Support, Return And Replacement, Online Support	Color:	Optioinal
Tire Quantity:	10+1	Keyword:	Bulk Feed Truck
Chassis Optional:	JMC,JAC,FAW,BEIBEN,SHACMAN,HONGYAN,HOWO,DONGFENG,HINO,FOTON

Condition:	New
Transmission Type:	Manual
Emission Standard:	Euro 2
Fuel Type:	Diesel
Dimensions (L X W X H) (mm):	9000x2500x3800
Gross Vehicle Weight:	18000
After-sales Service Provided:	Video Technical Support, Return And Replacement, Online Support
Color:	Optioinal
Tire Quantity:	10+1
Keyword:	Bulk Feed Truck
Chassis Optional:	JMC,JAC,FAW,BEIBEN,SHACMAN,HONGYAN,HOWO,DONGFENG,HINO,FOTON

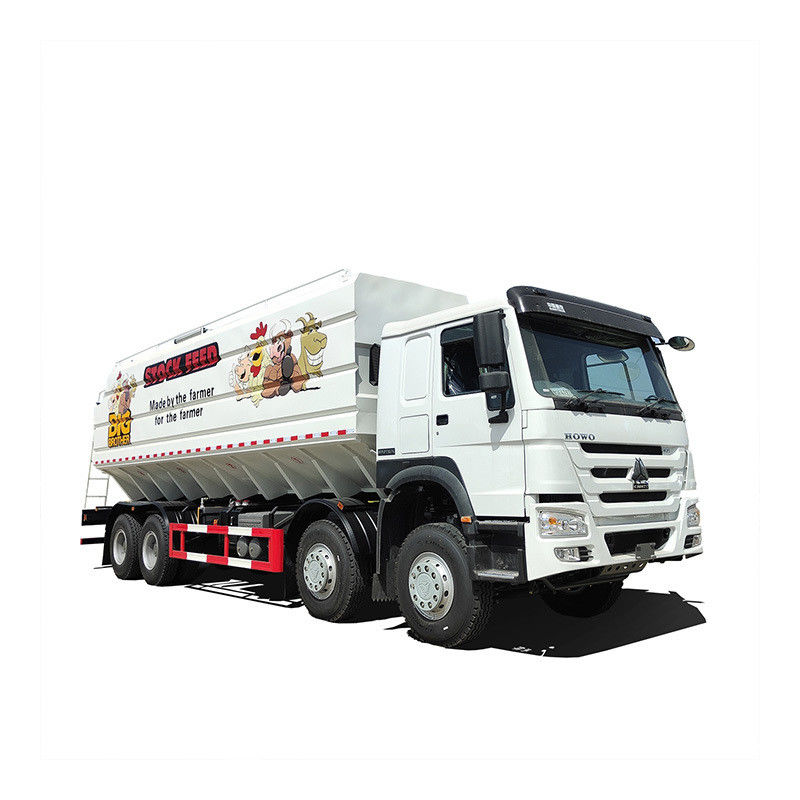

Sinotruk LHD RHD Livestock Feed Truck Animal 6X4 Bulk Feed Truck

Product Description

Sinotruk LHD RHD Livestock Feed Truck Animal 6X4 Bulk Feed Truck 0

Dimension(L×W ×H)(unloaded)(mm)		12000×2550×3995
Approaching angle/Departure angle(°)		16/15
Overhang(front/rear) (mm)		1500/2200
Wheel base (mm)		1800+4600+1350
Max speed(km/h)		102
Total weight(kg)		31000
Curb weight(kg)		15300
Engine	Model	WP12.400E201,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling
	Fuel type	Diesel
	Power, max (kw/rpm)	294/2100
	Emission	EURO 2
Fuel tanker capacity (L)		400
Transmission	Model	HW19712,12 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Front axle	9.5 tons
Rear axle	16 tons double
Tyre	12R22.5
Electrical system	Battery	2X12V/180Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HOWO76 Standard cab,8X4 RHD

Upper specification
Apartment	4	Tank size(mm)	9000x2550x2350
Discharge rate(kg/min)	550-650	Swivel Angle of movable discharging crane	±180 °
Maximum distance of horizontal convey(m)	7	Maximum elevation Angle of movable discharging crane	60 °
Tank volume	40m³	Swivel Angle of movable discharging crane(m)	8.8
Packing auger diameter(mm)	273	Loading tons	12.0 tons
Discharge time(min)	35	Residual rate (%)	0.01
Discharge principle	Hydraulic twist, blade rotation	Packing auger material	Alloy steel
Discharge system(blade rotate)	Horizontal twisted dragon (horizontal tank bottom feeding 273mm), vertical twisted dragon (feeding 273mm), movable twisted dragon (top discharging 219mm)
