Highlight:

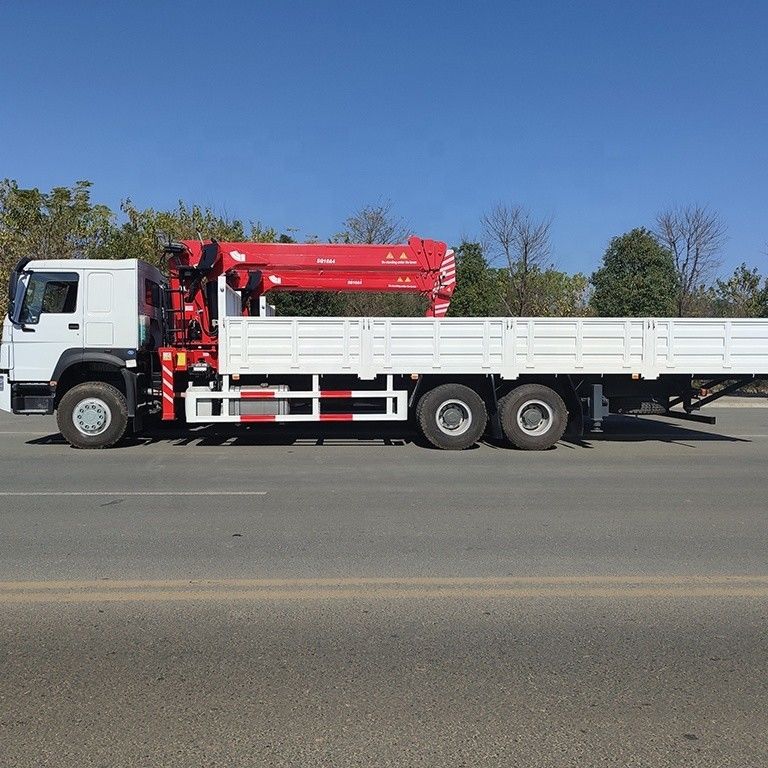

                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                SINOTRUK HOWO Mobile Crane Truck, 6x4 Hydraulic Truck Mounted Cranes


Application:	Optional	Rated Loading Capacity:	30 Ton
Rated Lifting Moment:	10Ton.m	Max. Lifting Height:	15.6 Meters
Span:	360	Warranty:	12 Months
Hydraulic Cylinder Brand:	Hengli	Hydraulic Pump Brand:	Hengli
Hydraulic Valve Brand:	Hengli	Engine Brand:	WEICHAI
UNIQUE SELLING POINT:	High Operating Efficiency	Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided	Core Components:	Motor, Bearing, Gear, Gearbox, Engine, PLC
Weight (KG):	3970 Kg	Color:	Optional
Brand:	Accepted	Feature: Truck Crane:	10ton Mounted Truck Crane
Product Name:	Telescoping Boom	Crane Type:	Truck Crane Mobile Crane Hydraulic Crane
Chassis Brand:	Sino Truck Howo	Driving Type:	6*4
Hydraulic Parts:	Telescopic Boom Mobile Crane Made	Variable Box Model:	Fast 8 Speed Transmission High
Type Of Winch The Crane Can Match:	Hand Operated Winch	Feature:	TRUCK CRANE
Condition:	New	Warranty Of Core Components:	1 Year

Application:	Optional
Rated Loading Capacity:	30 Ton
Rated Lifting Moment:	10Ton.m
Max. Lifting Height:	15.6 Meters
Span:	360
Warranty:	12 Months
Hydraulic Cylinder Brand:	Hengli
Hydraulic Pump Brand:	Hengli
Hydraulic Valve Brand:	Hengli
Engine Brand:	WEICHAI
UNIQUE SELLING POINT:	High Operating Efficiency
Machinery Test Report:	Provided
Video Outgoing-inspection:	Provided
Core Components:	Motor, Bearing, Gear, Gearbox, Engine, PLC
Weight (KG):	3970 Kg
Color:	Optional
Brand:	Accepted
Feature: Truck Crane:	10ton Mounted Truck Crane
Product Name:	Telescoping Boom
Crane Type:	Truck Crane Mobile Crane Hydraulic Crane
Chassis Brand:	Sino Truck Howo
Driving Type:	6*4
Hydraulic Parts:	Telescopic Boom Mobile Crane Made
Variable Box Model:	Fast 8 Speed Transmission High
Type Of Winch The Crane Can Match:	Hand Operated Winch
Feature:	TRUCK CRANE
Condition:	New
Warranty Of Core Components:	1 Year

SINOTRUK HOWO 10 Ton Mobile Crane Truck 6x4 Hydraulic Truck Mounted Cranes

Product Description

Dimension(L×W ×H)(unloaded)(mm)		12000×2550×3200
Cargo body size (L×W×H)(mm)		9600x2300x800
Approaching angle/Departure angle(°)		16/9
Overhang(front/rear) (mm)		1500/3300
Wheel base (mm)		5850+1350
Max speed(km/h)		110
Curb weight(kg)		13800
Loading Weight(kg)		15070
Actual loading		10-30T
Engine (Steyr technology, made in China)	Model	WD615.87,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling, directly injection
	Fuel type	Diesel
	Power, max(kw/rpm)	213/2200
	Emission	EURO 2
Fuel tanker capacity (L)		400
Transmission	Model	HW13710,10 forward&2 reverse
Brake system	Service brake	Dual circuit compressed air brake
	Parking brake	spring energy, compressed air operating on rear wheels
Steering system	Model	ZF(LHD)
Front axle	Steering with double T-cross section beam HF9
Rear axle	Cast axle housing, central double reduction with differential locks between axles and wheels HC16
Tyre	12.00R20
Electrical system	Battery	2X12V/165Ah
	Alternator	28V-1500kw
	Starter	7.5Kw/24V
Cab	HOWO76 Standard cab, all-steel forward control,55ºhydraulically tiltable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers
Mounted crane	SQ10A4
Brand	CX
Max loaded weight	10 Tons
Control system	Hydraulic rod operation
Working radius	13.6m
Hydraulic oil tank volume	160 L
Rotation	360°
Kerb weight	3970KG
Lifting height	15.6 m
