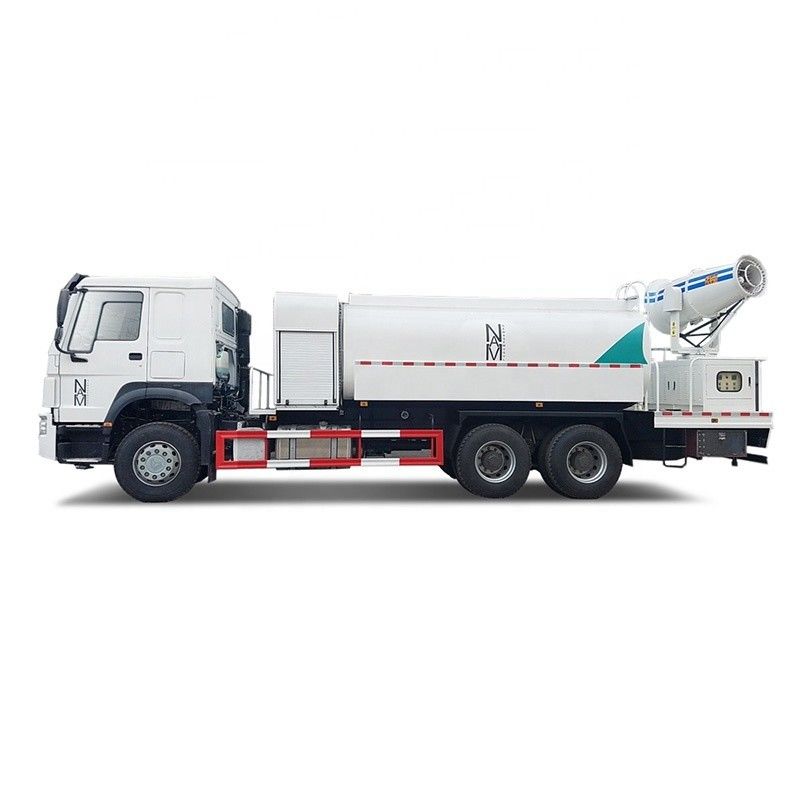

SINOTRUK 6x4 Mist Dust Sprayer Water Bowser , Truck Mounted Sprayer EURO 2

Dimension(L×W ×H)(unloaded)(mm)

10987×2496×3115

Wheel base (mm)

4600+1400

Max speed(km/h)(km/h)

90

Curb weight(kg)

13420

Loading Weight(kg)

17310

Engine

(Steyr technology, made in China

Model

WP10.300E22,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter-cooling

Fuel type

Diesel

Power, max(kw/rpm)

220/2200 (300hp)

Emission

EURO 2

Fuel tanker capacity (L)

400

Transmission

Model

HW19710,10 forward&2 reverse10

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Steering system

Model

Bosch

Front axle

VGD95,drum

Rear axle

ST16

Tyre

12.00R20

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 Standard cab, all-steel forward control

Equipment

Water pump, front and rear sprayer, back operation platform with water gun

Sprayer Type

QF 100 type

Process

High temperature spraying

Generator

150KW

Blower power

45kW (aluminum alloy double fan blade)

Diameter of wind cylinder

1000m

Liquid pump type

12T stainless steel multistage centrifugal pump

Pump motor power

 11kW

Spray flow rate

100-200L/min

Working pressure

1.0-3.0MPa

Number of nozzles

Spray ring 80-100pcs

Nozzle material

Stainless steel

Range (static wind state)

Horizontal 100m

Fog spectrum range

50-15

Elevation and pitch angle

10~50 Double hydraulic (remote control)

Rotation angle

360° round-trip adjustable (remote control)

Control mode

8-button remote control

Power supply

AC/380/three-phase four-wire

With programming

  PLC software

Filtering device

200 mesh filter
