Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                                FOTON AUMARK Fuel Tank Truck, 4x2 Fuel Tank Truck 10000 Liter


Condition:	New	Storage:	Oil
Drive Wheel:	4X2	Horsepower:	< 150hp
Transmission Type:	Manual	Fuel Type:	Diesel
Tank Volume:	5001 - 10000L	Dimensions (L X W X H) (mm):	673021382440
Gross Vehicle Weight:	10-15T	After-sales Service Provided:	Video Technical Support, Return And Replacement, Field Installation, Commissioning And Training, Online Support, Free Spare Parts, Field Maintenance And Repair Service
Capacity (Load):	11 - 20T	Engine Capacity:	4 - 6L
Forward Shift Number:	5	Maximum Torque(Nm):	500-1000Nm
Fuel Tank Capacity:	100-200L	WHEELBASE:	3800mm
Engine:	F3.8s3141	Horse Power:	95HP-115HP-120HP-160HP-190HP-245HP-270HP-315HP
Color:	Customers' Requirements	Tank Material:	Q235 Carbon Steel/ Stainless Steel
Transmission:	5-speed	Emission Standard:	Euro 2/3/4/5
Application:	Fueling Control System Oil	Port:	Any Port In China

Condition:	New
Storage:	Oil
Drive Wheel:	4X2
Horsepower:	< 150hp
Transmission Type:	Manual
Fuel Type:	Diesel
Tank Volume:	5001 - 10000L
Dimensions (L X W X H) (mm):	673021382440
Gross Vehicle Weight:	10-15T
After-sales Service Provided:	Video Technical Support, Return And Replacement, Field Installation, Commissioning And Training, Online Support, Free Spare Parts, Field Maintenance And Repair Service
Capacity (Load):	11 - 20T
Engine Capacity:	4 - 6L
Forward Shift Number:	5
Maximum Torque(Nm):	500-1000Nm
Fuel Tank Capacity:	100-200L
WHEELBASE:	3800mm
Engine:	F3.8s3141
Horse Power:	95HP-115HP-120HP-160HP-190HP-245HP-270HP-315HP
Color:	Customers' Requirements
Tank Material:	Q235 Carbon Steel/ Stainless Steel
Transmission:	5-speed
Emission Standard:	Euro 2/3/4/5
Application:	Fueling Control System Oil
Port:	Any Port In China

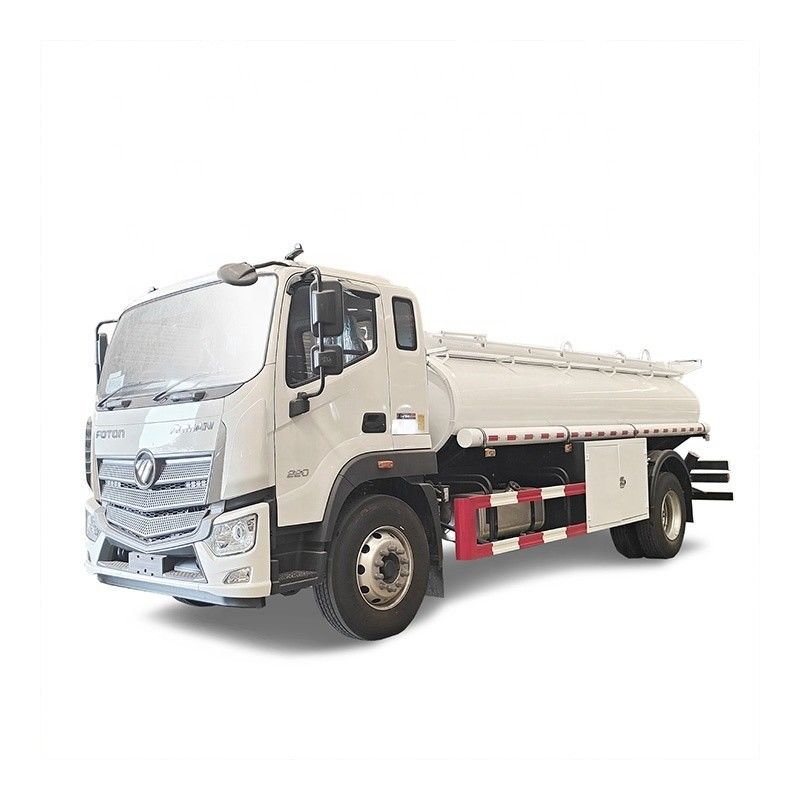

FOTON AUMARK 4x2 Fuel Tank Truck 10000 Liter Fuel Delivery Truck Bowser

Products Description

Vehicle model			AUMARK-S38
Cabin			Single row/W2060/left rudder
Whole vehicle main dimensions	Overall dimensions (LxWxH)mm	6730×2138×2440
Whole vehicle main dimensions		Wheel base(mm)	3800
Weight data	Curb weight(kg)	3528
		Gross vehicle weight(kg)	11995
		Persons in cab	3
Whole vehicle main performance	Max. speed(km/h)	105
ENGINE	Model	F3.8s3141
		Emissions standards	EuroⅢ
		Displacement(L)	3.76
		Rated Power(kw/rpm)	105
		Max torque (N.m/rpm)	450
Gearbox	Model	6S558
Front axle	Type/Mainreducetion ratio	3.6T
Rear axle	Type/Mainreducetion ratio	6.5T/5.286
Suspension	Front suspension/Leaf spring number	9
Suspension		Rear suspension/Leaf spring number	8+6
Brake system	Service brake	Drum pneumatic braking
		Parking brake	Brake gas brake
		Auxiliary brake	Engine exhaust brake
Wheels and tyre size			6+1/( 8.25R20 14PR)
Tank	top color	optinal
		Volume	4m3
		Tank material and thickness	Part of the tank material,thickness:Q235B carbon steel, 4mm Head material and thickness: Q235B carbon steel, 5mm
		Emergency shut-off valve	Quantity: 1 Material thickness: aluminum alloy
		Manhole cover	Type: Aluminum European standard breathing valve with tank port Quantity: 1 Diameter: 500mm
		Oil pump and pipeline	Oil pump, seamless steel pipe; Pump flow: 30m³/h; Pump pressure: 0.6Mpa; Speed: 960r/min; Shaft power: 7.1KW
		Pump inlet and outlet	Specification: choose one of DN50/DN65, aluminum alloy Control method: manual
		Refueling reel and fueling gun	15m automatic return reel nozzle
		Fuel dispenser	Three gold medals Chinese and English fuel dispenser (with ticketing function)
		power takeoff	SDQ51-38PQ1 (flange output) or SDQ51-38LGQ1 (spline output)
		Climb the ladder	Welded independent climbing ladder at the end of the tank-movable European style climbing ladder with anti-skid board
		Top guard	Protective handrails are installed on both sides of the top of the tank-aluminum alloy folding guardrail Anti-skid plate installed on the top of the tank-anti-skid walkway
		Tube box	Number: 2 Installation position: one on each side of the tank Specifications: The length of the tube box is the same as the tank body, and the cross section is circular Water diversion pipe: each pipe box has a built-in water diversion pipe with male and female end joints. The joint model is DN50/DN65.
		Fire extinguisher barrel	Material: Q235 Quantity: 2
		Fire extinguisher	Specification: 4KG Quantity: 2
		exhaust pipe	Rear to front
		Electrostatic device	Metal electrostatic plate, electrostatic belt device: 1 each
Subframe	Tank bottom auxiliary beam	Made of Q345 carbon steel plate
