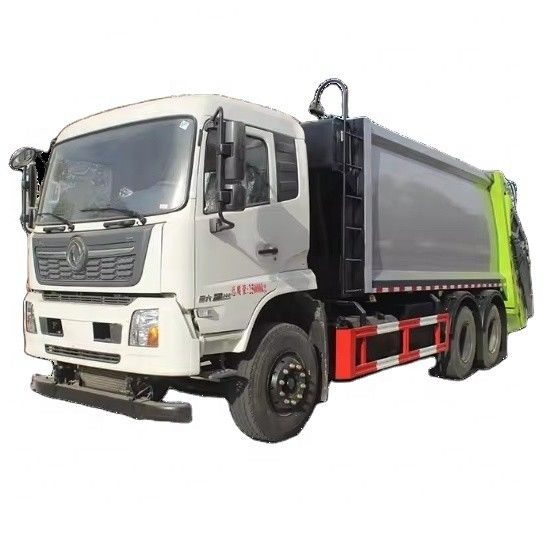

Dongfeng Tianjin 6x4 Compactor Garbage Truck

Product Details

Place of Origin: Hubei, China

Payment & Shipping Terms

Price: CN¥289,228.00/units >=1 units

Get Best Price
Highlight:

euro 6 compactor garbage truck

,

euro 6 swing arm garbage truck

Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 2 - Euro 6, Euro 2 - Euro 6
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
9290x2530x3020
Gross Vehicle Weight:
25000
After-sales Service Provided:
Video Technical Support, Online Support
Medium:
Garbage
Truck Usage:
Garbage Collection
Garbage Bin Volume:
18 - 20t
Chassis:
Dongfeng, DFH1250B
Engine:
Dongfeng, DDi75E260-60
Transmission:
FAST, 8MT
Wheelbase:
4350+1350 Mm
Tire:
11.00R20 18PR
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 2 - Euro 6, Euro 2 - Euro 6
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
9290x2530x3020
Gross Vehicle Weight:
25000
After-sales Service Provided:
Video Technical Support, Online Support
Medium:
Garbage
Truck Usage:
Garbage Collection
Garbage Bin Volume:
18 - 20t
Chassis:
Dongfeng, DFH1250B
Engine:
Dongfeng, DDi75E260-60
Transmission:
FAST, 8MT
Wheelbase:
4350+1350 Mm
Tire:
11.00R20 18PR
Dongfeng Tianjin 6x4 Compactor Garbage Truck
Product Description



Overall Dimensions (mm)

9290x2530x3020

Cab

Brand

Dongfeng

Capacity (people)

2/3

Position of Driver

LHD/RHD

Chassis

Engine

Brand

Dongfeng

Model Number

DDi75E260-60

Displacement (ml)

7500

Fuel Type

Diesel

Power (kw/ps)

190/258

Emission Standard

Euro 2 - Euro 6

Transmission

Type

8MT

Wheelbase (mm)

4350+1350

Axle

Number

3

Tire

Drive type

6x4

Amount & Distribution

10

(2 tires in the front, 8 tires on the back)

Specification

11.00R20 18PR, with a spare tire

Approach Angle (°)

21

Departure Angle (°)

16

Front Overhang (mm)

1915

Rear Overhang (mm)

1860

Weight

  Gross Weight (kg)

25000

Rated Load (kg)

11070

Curb Weight (kg)

13800
Standard Superstructure Configuration

1. Q355 high-strength steel arc garbage bin(bin material edge 4, bottom 5)

2. Suizhou XINGGUANGTONG oil cylinder, JIASHAN PTO, ZHONGMEI multi-way valve, Hefei CHANGYUAN double gear pump, TIANHE high-pressure oil hose, hydraulic pipeline is connected with ferrule head, CAN bus electronic control system, emergency buttons on both sides, the garbage bin can be controlled manually or by electronic control, big volume hydraulic oil tank, high-pressure filter for hydraulic system, filling machine lifting cylinder with hydraulic lock,t the truck can handle two 240L plastic trash can at one time, the truck is equipped with 2 sewage tanks, the pushing shovel oil cylinder is bi-directional peristaltic compression (with a closed pressure valve), filler with working light.

Other Configuration

Dongfeng original A/C, telecontrol door lock, airbag seat, 280L steel oil tank, DVR, BBM box.

Dongfeng Tianjin 6x4 Compactor Garbage Truck 0Dongfeng Tianjin 6x4 Compactor Garbage Truck 1Dongfeng Tianjin 6x4 Compactor Garbage Truck 2Dongfeng Tianjin 6x4 Compactor Garbage Truck 3Dongfeng Tianjin 6x4 Compactor Garbage Truck 4Dongfeng Tianjin 6x4 Compactor Garbage Truck 5

Packaging & Shipping

Packaging

- Naked or waxed.

                  -->Container (20GP, 40GP, 40HQ, 40FR).

                  -->Ro-Ro shipping.

                  -->Bulk ship.

                  -->Flat rack.

                              etc.

Shipping

- By sea or by rail, at customer request.

Services

1. Warranty period: 1 year since our customer receives his products.

2. Necessary documents: Operation manuals and guiding videos.

3. Troubleshooting:  If any questions about operation arises, contact us to resolve your problems.

Factory profile



Honorary certificate

Dongfeng Tianjin 6x4 Compactor Garbage Truck 6

Factory snapshots

Dongfeng Tianjin 6x4 Compactor Garbage Truck 7Dongfeng Tianjin 6x4 Compactor Garbage Truck 8

Dongfeng Tianjin 6x4 Compactor Garbage Truck 9

Dongfeng Tianjin 6x4 Compactor Garbage Truck 10

Product delivery ceremony (China customers)

Dongfeng Tianjin 6x4 Compactor Garbage Truck 11

Introduction to our factory

Hubei Runli Special Automobile Co., Ltd is established on January 19th, 2009, and its registered capital is 5,000.00 million CNY. Our company is permitted by China Ministry of Industry and Information Technology to produce special automobile and hazardous chemicals tank body. Besides, our company is credited with such titles as “Little Giant for Specialized,Precise,Unique and Innovative Automobile Production”,“China High-tech Enterprise”,“Enterprise With Excellent Credit Standing (Hubei province, China)”,“Provincial Enterprise Technology Center (Hubei province, China)” and “Special Automobile Export Enterprise (Hubei province, China)”.

Our factory covers an area of 120000 square meters, and has the capacity of producing 5,000 special automobiles each year. There are 5 major types of products we concentrate on manufacturing – Hazardous chemicals transportation truck, sanitation truck(sprinkler truck,water tanker truck), tow truck, high-altitude operation truck and emergency relief truck.

Our company has passed the authentication below:

       -Product quality: GB/T19001-2016(ISO 9001:2015)

       -Environment protection: GB/T45001-2020/ISO45001-2018

       -Worker health and safety protection: GB/T28001-2011/OHSAS18001:2007

       -After-sale service: GB/T27922-2011(Chinese National Standard)

       -AAA Enterprise Credit Rating Certification (Hubei province)

       -CCC Certification (CCC is abbreviation of China Compulsory Certificate).

And the product qualification ratio of our company reaches 99.5%.

Moreover, our products have been exported to over 20 countries such as Philippine,Cambodia,Tanzania,Costa Rica,Bolivia,Chile,Republic of Columbia,Ethiopia,Venezuela, etc..

Our company holds the faith that “quality, credit standing, technology and full-process service” is key to serving customers and aims to provide high-quality special automobile to clients all over the world.
