Home > products > Garbage Truck > China FAW J6L 4x2 Compression Docking Compactor Garbage Truck

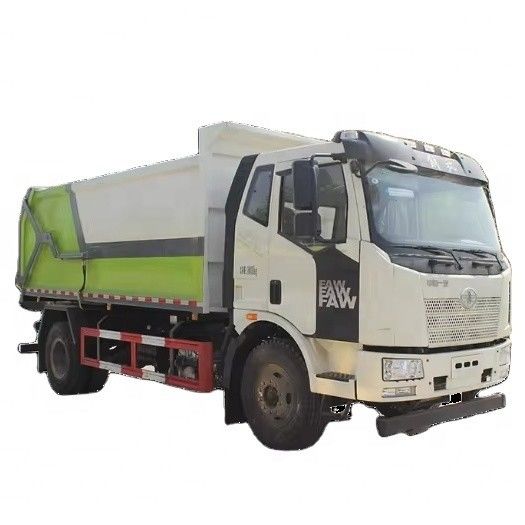

China FAW J6L 4x2 Compression Docking Compactor Garbage Truck

Product Details

Place of Origin: Hubei, China

Payment & Shipping Terms

Price: CN¥191,613.55/units >=1 units

Get Best Price
Highlight:

4x2 compactor garbage truck

,

4x2 swing arm garbage truck

,

euro 6 compactor garbage truck

Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 2 - Euro 6, Euro 2 - Euro 6
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
7750x2500x3250
Gross Vehicle Weight:
18000
After-sales Service Provided:
Video Technical Support, Online Support
Medium:
Garbage
Truck Usage:
Garbage Collection
Chassis:
FAW, CA1180P62K1L2A1E6Z
Engine:
FAW, CA4DK1-22E6
Transmission:
FAST, 8MT
Wheelbase:
4500 Mm
Tire:
275/80R22.5 18PR
Condition:
New
Transmission Type:
Manual
Emission Standard:
Euro 2 - Euro 6, Euro 2 - Euro 6
Fuel Type:
Diesel
Dimensions (L X W X H) (mm):
7750x2500x3250
Gross Vehicle Weight:
18000
After-sales Service Provided:
Video Technical Support, Online Support
Medium:
Garbage
Truck Usage:
Garbage Collection
Chassis:
FAW, CA1180P62K1L2A1E6Z
Engine:
FAW, CA4DK1-22E6
Transmission:
FAST, 8MT
Wheelbase:
4500 Mm
Tire:
275/80R22.5 18PR
China FAW J6L 4x2 Compression Docking Compactor Garbage Truck
Product Description



Overall Dimensions (mm)

7750x2500x3250

Cab

Brand

FAW J6L

Capacity (people)

2

Position of Driver

LHD/RHD

Chassis

Engine

Brand

FAW

Model Number

CA4DK1-22E6

Displacement (ml)

4764

Fuel Type

Diesel

Power (kw/ps)

165/224

Emission Standard

Euro 2 - Euro 6

Transmission

Type

8MT

Wheelbase (mm)

4500

Axle

Number

2

Tire

Drive type

4x2

Amount & Distribution

6

(2 tires in the front, 4 tires on the back)

Specification

275/80R22.5 18PR, with a spare tire

Approach Angle (°)

17

Departure Angle (°)

22

Front Overhang (mm)

1400

Rear Overhang (mm)

1770

Weight

  Gross Weight (kg)

18000

Rated Load (kg)

9155

Curb Weight (kg)

8650
Standard Superstructure Configuration Square arc shape garbage bin, dumping angle is over 45°, the garbage bin can be controlled manually or electronically, the pressure of the system is 16Mpa, Yangzhou ZHONGMEI multi-way valve, Hefei CHANGYUAN hydraulic oil pump, XINGGUANGTONG rear lid opening and lifting cylinder.
Other Configuration

1. Electricity, gas and hydraulic control system

2. The garbage bin is welded with reinforced beam and steel plate, the side of the bin is a platform, the upper side of the bin is arc shape

3. No secondary pollution. The joint between the garbage bin and the rear lid is sealed with special rubber sealing strip. There is a sewage tank used to collect fluids in the waste, and the tank is installed with drain valve to ensure its tightness

4. The hydraulic lifting circuits adopt dual cylinder lifting

5. All the systems of the truck can be controlled manually or electronically

6. The operation box is installed with the driving cab, which is handy to use

7. The side plate is made by bending an entire steel plate so that there are as few welds on the surface as possible. Structural adhesive is applied on the unwelded places to prevent rusting.

China FAW J6L 4x2 Compression Docking Compactor Garbage Truck 0China FAW J6L 4x2 Compression Docking Compactor Garbage Truck 1China FAW J6L 4x2 Compression Docking Compactor Garbage Truck 2China FAW J6L 4x2 Compression Docking Compactor Garbage Truck 3China FAW J6L 4x2 Compression Docking Compactor Garbage Truck 4China FAW J6L 4x2 Compression Docking Compactor Garbage Truck 5

Packaging & Shipping

Packaging

- Naked or waxed.

                  -->Container (20GP, 40GP, 40HQ, 40FR).

                  -->Ro-Ro shipping.

                  -->Bulk ship.

                  -->Flat rack.

                              etc.

Shipping

- By sea or by rail, at customer request.

Services

1. Warranty period: 1 year since our customer receives his products.

2. Necessary documents: Operation manuals and guiding videos.

3. Troubleshooting:  If any questions about operation arises, contact us to resolve your problems.
