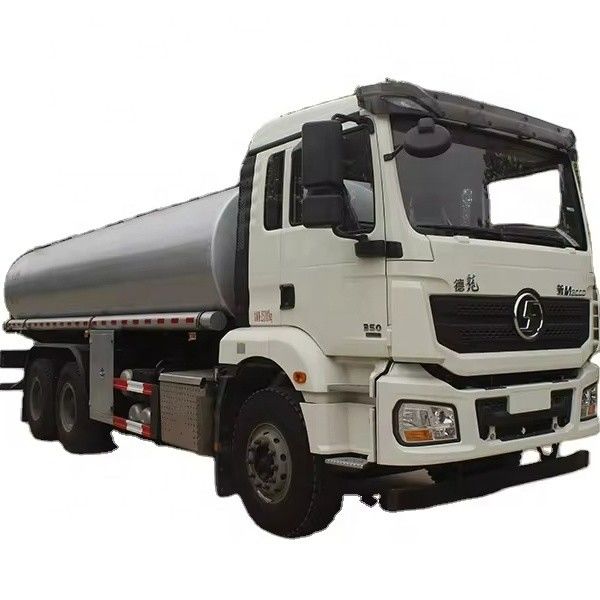

Shacman Delong Liquid Supply Tank Truck Euro 6 Emission Standard 80km/H

Product Details

Place of Origin: Hubei, China

Brand Name: Runzhixing

Payment & Shipping Terms

Price: CN¥314,535.45/units >=1 units

Get Best Price
Highlight:

Delong Liquid Supply Tank Truck

,

Liquid Supply Tank Truck Euro 6

Medium:
Well Flushing Fluid, Water Reducer
Tank Volume:
18700L
Chassis:
Shacman, SX1259MC4C1
Engine:
WEICHAI, WP8.350E61
Transmission:
SHAANCHI, 10JSD140T
Wheelbase:
4375+1400 Mm
Tire:
12.00R20 16PR, Steel Wire Tire
Emission Standard:
Euro 6
Medium:
Well Flushing Fluid, Water Reducer
Tank Volume:
18700L
Chassis:
Shacman, SX1259MC4C1
Engine:
WEICHAI, WP8.350E61
Transmission:
SHAANCHI, 10JSD140T
Wheelbase:
4375+1400 Mm
Tire:
12.00R20 16PR, Steel Wire Tire
Emission Standard:
Euro 6
Shacman Delong Liquid Supply Tank Truck Euro 6 Emission Standard 80km/H
Product Description



Overall Dimensions (mm)

9980x2550x3450

Cab

Brand

Shacman Delong New M3000

Capacity (people)

2/3

Position of Driver

LHD

(Left hand drive)

Chassis

Engine

Brand

WEICHAI

Model Number

WP8.350E61

Displacement (ml)

7800

Fuel Type

Diesel oil

Power (kw/ps)

257/350

Emission Standard

Euro 6

Transmission

Brand

SHAANCHI, FAST

Model Number

10JSD140T

Type

10MT, 10 forward & 2 reverse gears

Wheelbase (mm)

4375+1400

Axle

Number

3

Tire

Drive type

6x4

Amount & Distribution

10

(2 tires in the front, 8 tires on the back)

Specification

12.00R20 16PR, steel wire tire, with a spare tire

Approach Angle (°)

16

Departure Angle (°)

10

Front Overhang (mm)

1525

Rear Overhang (mm)

2680

Tank

Material

 Q235 carbon steel

Dimensions (mm)

7200x2480x1680

Nominal Capacity (L)

 18700

 Actual Capacity (L)

17810

Weight

  Gross Weight (kg)

25000

Rated Load (kg)

11225

Curb Weight (kg)

13645

 Maximum Speed (km/h)

80

Chassis Configuration

Shacman New M3000 6x4 rear double axle, 400L aluminum alloy engine oil tank, speed limiter, central control lock, WEICHAI 350ps engine, FAST 10MT transmission, 12.00R20 16PR steel wiretire, A/C, electricity-driven window glass, DVR(digital video recorder), safety belt reminder, brake pad wear alarm, power steering, clutch steering.

Superstructure Configuration

1. The tank is processed by longitudinal automatic welding

2. Baffles are installed

3. High-pressure water head

4. Surface sand blasting

5. Laser cutting process

6. Single compartment with pump (pumping in and out, the inlet and outlet are in the pump box)

7. Tank top feed port

8. Tank top is laid with anti-skid net

9. Downspouts on both sides

10. A ladder

11. Two fire extinguishers

12. Barrel tube on both sides are made from acid and alkali-resistant PV tube

13. Two built-in infusion hoses with quick connector

14. Standard bumper



Packaging & Shipping

Packaging

- Naked or waxed.

                  -->Container (20GP, 40GP, 40HQ, 40FR).

                  -->Ro-Ro shipping.

                  -->Bulk ship.

                  -->Flat rack.

                              etc.

Shipping

- By sea or by rail, at customer request.

Services

1. Warranty period: 1 year since our customer receives his products.

2. Necessary documents: Operation manuals and guiding videos.

3. Troubleshooting:  If any questions about operation arises, contact us to resolve your problems.
